High Quality TUV 9W 11W 13W G23 2g7 Base Pl-S9w UV Germicidal Lamp for Aquarium Water Filter

Product Description

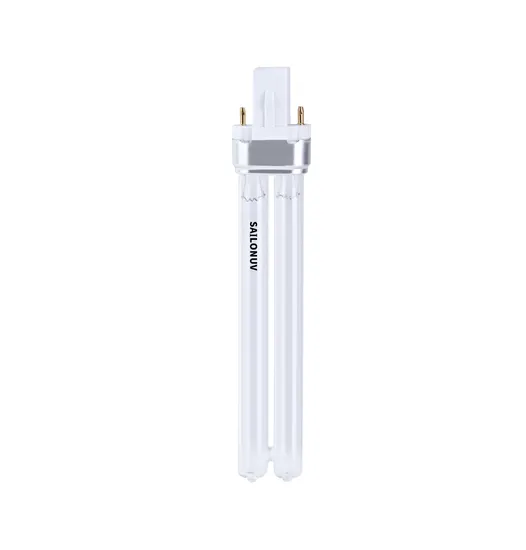

TUV G23/2G7 PL-S11W H shape UV germicidal Lamp Detailed Photos

Product Parameters

Type	Tube Diameter	Length (H)	Power	Voltage	Current	UV Output At 1M		Lamp Base	Standard Life	Long Life
	MM	MM	W	V	MA	uw/cm2	W		H	H
PL-S5W	12	85	5	34	180	12	1.1	G23/2G7	9000	13000
PL-S7W	12	115	7	47	175	20	1.5	G23/2G7	9000	13000
PL-S9W	13	145	9	60	170	23	2.4	G23/2G7	9000	13000
PL-S11W	13	214	11	89	160	33	3.6	G23/2G7	9000	13000
PL-S13W	13	155	13	60	290	31	3.4	GX23/2G7	9000	13000
PL-L18W	17	217	18	60	370	60	5.8	2G11	9000	13000
PL-L24W	17	317	24	87	350	90	7	2G11	9000	13000
PL-L35W*	17	217	35	40	850	105	11	2G11	9000	13000
PL-36W	17	410	36	105	440	120	12	2G11	9000	13000
PL-L55W*	17	530	55	103	540	170	18	2G11	9000	13000
PL-L60W*	17	410	60	118	670	170	18	2G11	9000	13000
PL-L95W*	17	530	95	100	950	305	33	2G11	9000	13000

The PL-S type H shape uv tubes all build-in starter that is suitable for electromagnetic ballast.
The electronic type need to be Customer-Made.
Product Description
The principles of disinfection:
UVC called germicidal UV ray, it can destroy DNA of virus, bacterial and other microorganish, make them lose reproductive ability,and most of virus,other microorganisms in the air and water Particularly.
Special features:
Ozone and ozone-free type for selection.
Produced by high purity quartz glass,up to 98% UV output rate.
For use in:Ultraviolet Sterilizers for Aquariums and Ponds.
Certifications
Company Profile
The process of making a UV lamp involves several steps to ensure its effectiveness in water disinfection. Here is a simplified explanation of the UV lamp making process:
Selection of Materials: The first step is to select the appropriate materials for the UV lamp. This includes choosing a high-quality quartz or glass tube for the lamp's housing, as well as the necessary electrical components such as electrodes and connectors.
Tube Preparation: The selected quartz or glass tube is then carefully cleaned and polished to remove any impurities or imperfections that may affect the lamp's performance. This step ensures the tube's transparency, allowing the UV light to pass through effectively.
Electrode Placement: Next, the electrodes are carefully positioned at both ends of the quartz or glass tube. These electrodes are typically made of a conductive metal alloy and serve as the contact points for the electrical current.
Sealing: To prevent any water leakage or damage to the lamp, the quartz or glass tube is sealed using a specialized sealing material or technique. This ensures the lamp remains watertight and durable, as it will be exposed to water during operation.
Electrical Connections: The electrodes are connected to the electrical wiring, which will provide the necessary power for the lamp to operate. These connections are securely made to ensure proper electrical conductivity and safety.
Testing and Quality Control: Once the UV lamp is assembled, it undergoes rigorous testing and quality control measures. This includes checking for proper electrical functionality, ensuring the lamp emits the required UV wavelength, and verifying that there are no defects or malfunctions.
Packaging and Distribution: After passing all quality control tests, the UV lamps are carefully packaged to protect them during transportation. The lamps are then distributed to manufacturers or suppliers who incorporate them into water UVC filter systems.
Packaging & Shipping
FAQ
Q:Can I have a sample of UV Lamp at first?
A:Yes.
Q:What's your lead time?
A:5-7Days for samples,15-20days for mass cargoes.
Q: What's your shipping method for sample and how long does it take to arrive?
A:For samples,3-5days via DHL or FEDEX.For mass cargoes,airline or ocean shipment.
Q:Do you offer guarantee for the products?
A:Yes,1 years warranty for UV Lamp.
Q:Can I have my own design package and logo on the products?
A:Yes,sure.
Q:What's your advantages compared with other supplier?
A:SailonUV use high-quality quartz glass to make sure high UV output than others,CE&Rohs certificates,competitive price,core filament electronic power processing technology.Advantage processing & testing equipment.The best quality raw material.
Q:What are the using of the UV Lamps?
A: The UV lamps can be use for water treatment,aquarium,medical care,air purification etc...
Q: What's the difference between normal and amalgam lamps?
A:Compared with the normal lamps,amalgam lamp increased the ultraviolet UV output efficiency by 2-3times at the same length and it can output high intensity UV radiation stably in a stale environment of 4-60degrees.
Q:Can you accept the OEM Or ODM?
A:OEM.

---
