Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Table Travel (Y) (mm)
500
Min. Time of Tool Change(S)
3
Dimension(L*W*H)
2700*2400*2500
Tool Magazine Capacity
24
Spindle Motor Power(Kw)
7.5
Range of Spindle Speed(r.p.m)
8000 - 15000 r.p.m
X/Y/Z Axis Travel
800*500*500
CNC Control System
GSK, Fanuc, Mitsubishi, Knd, Siemens
Transport Package
Wooden Case
Specification
2450mm*1850mm*2050mm
Production Capacity
100sets/Month
Product Description
Why Choose Us: Discover the exceptional reasons to partner with us at Taizhou Ruite Machinery Equipment Co., Ltd. Our unparalleled dedication to quality and customer satisfaction sets us apart. Popular EDM Machine in China and Overseas: Our EDM machines have captured the attention and trust of customers both in China and across international markets, showcasing our global reach and excellence.
Various Countries' Languages: We embrace diversity with a multilingual approach, ensuring that our products are accessible and user-friendly to a global audience by supporting a variety of languages. Operation Interface: Experience a seamless and intuitive operation interface designed for effortless navigation, enhancing user experience and efficiency.
Our operation software options such as Autocut, HL, X8, and more are tailored to meet the diverse processing requirements of our customers. Choose from several optional operation languages to suit your needs.
Join a Global Community: Our machines are trusted by numerous users worldwide, reflecting the reliability and superiority of our products.
International Partnerships: We've cultivated long-term, close cooperation relationships with international partners in over 20 countries, exemplifying our commitment to global collaboration.
Lifelong Technical Service: Benefit from our promise of comprehensive, lifelong technical support, ensuring your machinery operates at peak performance throughout its lifecycle.
We guarantee 24-hour service and lifelong technical support. Our training will guide you on installation and usage, complemented by a lifetime supply of spare parts to keep your operations running smoothly.
Over 10 Years of Expertise: Leverage our decade-long experience in the industry, a testament to our knowledge and commitment to innovation and customer satisfaction.
Our enterprise philosophy centers on 'Quality guarantee, high efficiency, valuing friendship, observing credibility, and a sincerity-oriented approach,' underscoring our commitment to excellence.
It's a principle that all our staff uphold. Quality and honesty are the cornerstones that ensure the future success and integrity of our enterprise.
SPECIFICATIONS
| Units
| RT-850V
|
Worktable size
| mm
| 1000*500
|
X /Y/Z axis travel
| mm
| 800*500*500
|
Maximum load bearing of worktable
| KG
| 500
|
T Shot
| mm
| 5×18×100
|
Spindle face to table distance
| mm
| 120-620
|
Distance between spindle center and column guide surface
| mm
| 125-625
|
Spindle taper
|
| BT40
|
Main shaft connection
|
| Belt
|
Range of spindle speed
| rpm
| 8000(Optional:15000 )
|
Spindle motor power
| KW
| (Alternating current servo)7.5
|
X/Y/Z axis rapid movement rate
| m/min
| 48/48/48
|
Maximum tool size
| mm
| Φ120(tool from a distance)
|
Maximum tool weight
| kg
| 8
|
PositionaI accuracy(JIS standard)
| mm
| ±0.008/300
|
Repeated positioning accuracy(JIS standard)
| mm
| ±0.005
|
X/Y/Z Guide way type
|
| TAI WAN roller Linear rail
|
X/Y/Z Screw type
|
| TAI WAN ball screw
|
Machine size
| mm
| 2700*2400*2500
|
Weight
| T
| 5.2
|
Product Description

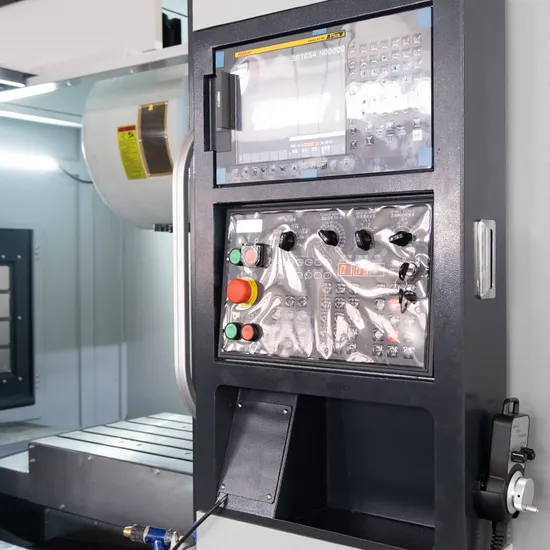

Detailed Photos
Product Parameters
Established in 2017, Taizhou Ruite Machinery Equipment Co., Ltd boasts accolades such as 3A integrity enterprise, ISO9001, and SGS certifications. We are committed to high-tech quality and efficient service, offering premium products at fair prices to esteemed enterprises worldwide.
>>
