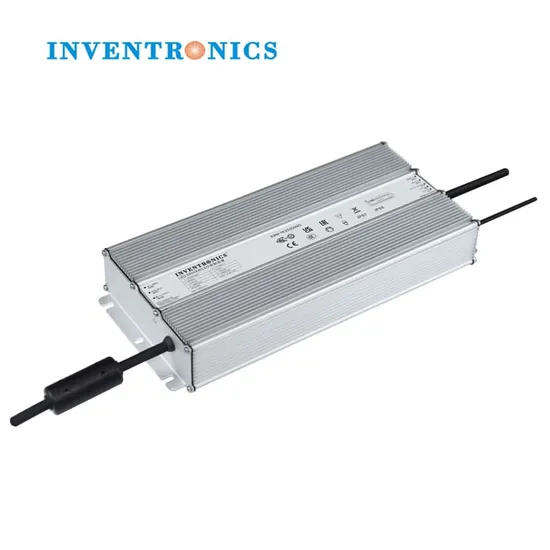

Inventronics Ebm-1K2sxxxmg 1200W Isolated 0-10V PWM 3-Timer-Modes Dimmable LED Drivers

US$125.00-150.00 100 Pieces (MOQ)

Basic Info.

Model NO.

EBM-1K2SxxxMG

Driving Method

LED Constant Current

Circuit Structure

Electronic Step-down Transformer

Certification

TUV, CE, RoHS, ISO9001, CCC, FCC, ENEC, CB, Ks, Kcc, Global-Mark, EMC, Ukca

Power Supply Mode

Constant Current Source

Modulation System

Isolated 0-10V/PWM/3-Timer-Modes Dimmable

In-Out

AC 176-305V or DC 190~250V Input, DC Output

Power Supply Voltage

AC 176-305V or DC 190~250V

Pack Sealing Size

SMD

Brand

Inventronics

Product Name

Inventronics 1200W 0-10V Timer PWM DIMM LED Driver

Adjustable Output Current

0.26-3.5A 0.395-5.25A 0.555-7.4A 7A 7AMPS

Output Voltage Range

171~462V 400V 114~304V 81~217V 100V 110V 120V 200V

Warranty

5 Years

Dimming Functions

Isolated 0-10V/10V PWM/3-Timer-Modes Dimmable

IP Class

Waterproof (IP66/ IP67)

Input Surge Protection

Dm 6kv, Cm 10kv

Efficiency

Super High Efficieny, up to 95.5%

Power Factor

0.99 at 220VAC; 0.96 at 277VAC

Protections

All-Around Protection: Ovp, SCP, Otp

Features

Low Inrush Current, End-of-Life Indicator

Other Features

Output Lumen Compensation Aoc with Programmability

Applications

High Mast, Sports UV-LED, Aquaculture Horticulture

Delivery Time

3 to 60 Working Days Due to Models and Quantity

Shipping Way

by Sea, by Train, by Air, by Express DHL FedEx etc

Transport Package

2PCS Per Inner Tray, 4PCS Per Brown Carton

Specification

12.21"x5.55"x1.91" (310x141x48.5mm), 3800g

Trademark

Inventronics

Origin

Hangzhou, Zhejiang, China

HS Code

8504401400

Production Capacity

20000pieces/Month

Product Description

Product Parameters Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	Power Factor		Model Number
Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	220Vac	277Vac	Model Number
0.26-3.5A	2.6-3.5A	3.5 A	176-305Vac 190~250Vdc	171 ~ 462Vdc	1200W	95.5%	0.99	0.96	EBM-1K2S350MG
0.395-5.25A	3.95-5.25A	5.25 A	176-305Vac 190~250Vdc	114 ~ 304Vdc	1200W	95.0%	0.99	0.96	EBM-1K2S525MG
0.555-7.4A	5.55-7.4A	7.4 A	176-305Vac 190~250Vdc	81 ~ 217Vdc	1200W	95.0%	0.99	0.96	EBM-1K2S740MG

Notes: (1) Output current range with constant power at 1200W. (2) Certified input voltage range: 200-240Vac. (3) Measured at 100% load and 220Vac input (see below "General Specifications" for details). Product Description Fetaures: Ultra High Efficiency (Up to 96.0%) Compact Metal Case with Excellent Thermal Performance Full Power at Wide Output Current Range (Constant Power) Adjustable Output Current (AOC) with Programmability Isolated 0-10V/PWM/3-Timer-Modes Dimmable INV Digital Dimming, UART Based Communication Protocol Dim-to-Off with Standby Power ≤ 0.5 W Always-on Auxiliary Power: 12Vdc, 250mA Output Lumen Compensation End-of-Life Indicator Input Surge Protection: DM 6kV, CM 10kV All-Around Protection: IUVP, IOVP , OVP, SCP, OTP Low inrush current IP66 / IP67 5 Years Warranty
Descriptions: The EBM-1K2SxxxMG series is a 1200W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 176-305 Vac input with excellent power factor. Created for many lighting applications including high mast, sports, UV-LED, aquaculture and horticulture etc., this family provides an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports 0-10V dimming as well as two-way communication via Digital Dimming, a UART based communication protocol. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature. Detailed Photos
