Product Description
Product Description

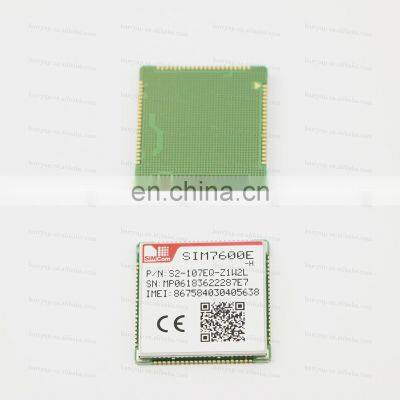

DescriptionSIM7600X-HLTE Cat.4 ModuleThe SIM7600-H series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules. Meanwhile the SIM7600-H series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.Product Advantages● LCC form factor with abundant interfaces● Suitable for LTE, UMTS and GSM networks with global coverage● Abundant software functions: FOTA, LBS, TLS, VoLTE● Multi-constellation GNSS receiver support● AT commands of the SIM7600-H series are compatible with the SIM7500/SIM7600 series modulesProductSIM7600A-HSIM7600V-HSIM7600SA-HSIM7600JC-HSIM7600E-HSIM7600NA-HSIM7600G-HForm FactorLCC, 87PINLCC, 87PINLCC, 87PINLCC, 87PINLCC, 87PINLCC+LGA, 119PINLCC+LGA, 119PINDimensions(mm)30.0*30.0*2.930.0*30.0*2.930.0*30.0*2.930.0*30.0*2.930.0*30.0*2.930.0*30.0*2.930.0*30.0*2.9Frequency BandsLTE-FDDB2/B4/B12B2/B4/B5/B13B1/B2/B3/B4/B5/B7/B8/B20/B28/B66B1/B3/B8/B18/B19/B26B1/B3/B5/B7/B8/B20B2/B4/B5/B12/B13/B14/B25/ B26/B66/B71B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66LTE-TDDB40B38/B40/B41B41B34/B38/B39/B40/B41WCDMAB2/B5B1/B2/B5/B81/B5/B8B1/B2/B4/B5/B6/B8/B19GSM850/900/1800/1900MHz900/1800MHz850/900/1800/1900MHzGNSSoooooooTemperature-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃Electrical FeaturesSupply Voltage(V)3.4~ 4.23.4~ 4.23.4~ 4.23.4~ 4.23.4~ 4.23.4~ 4.23.4~ 4.2Power Consumption(mA)LTE2.32.32.32.32.32.32.3WCDMA,DRX=93.33.33.33.3GSM,BS_PA_MFRMS=22.82.82.8Data TransferLTE(Mbps)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)HSPA+(Mbps)42(DL)/5.76(UL)42(DL)/5.76(UL)42(DL)/5.76(UL)42(DL)/5.76(UL)WCDMA(Kbps)384(DL)/384(UL)384(DL)/384(UL)384(DL)/384(UL)384(DL)/384(UL)GPRS/EDGE(Kbps)236.8(DL)/236.8(UL)236.8(DL)/236.8(UL)236.8(DL)/236.8(UL)Software FeaturesProtocolTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTLS●●●●●●●File System●●●●●●●Audio Record/PlayoooooooTTSoooooooDTMFoooooooLBS●●●●●●●FOTA●●●●●●●Jamming Detection●●●●●●●Android RILAndroid 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0USB DriverMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidWWAN (RNDIS)●●●●●●●ECM●●●●●●●MBIMWin8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10NDISLinux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Open LinuxoooooooFirmware UpgradeUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTAInterfacesSIM Card1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0VUART●●●●●●●USB●●●●●●●PCMoooooooAnalog AudiooooooooEmbedded SIM card socketoooooooDiversity Receiver●●●●●●●CertificationRegulatoryFCC/PTCRB/IC/RoHS/ REACHFCC/GCF/RoHS/REACHCE-RED/ACMA/FCC/NCC/ RoHS/REACH/AnatelTelec/JATE/RoHS/REACHCE-RED/RoHS/REACH/ IMDA/GCFFCC*/IC*/PTCRB*/GCF*/ RoHS*/REACH*CE-RED/FCC/IC/RCM/RoHS*/ REACH*CarrierAT&TVerizonDocomo/SoftbankDeutsche Telekom/VodafoneAT&T*/Verizon*/Sprint*/T-mobile*●: support o: optional * : on goingWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
