7 Axis Dual Spindles CNC Lathe Machine

Product Description

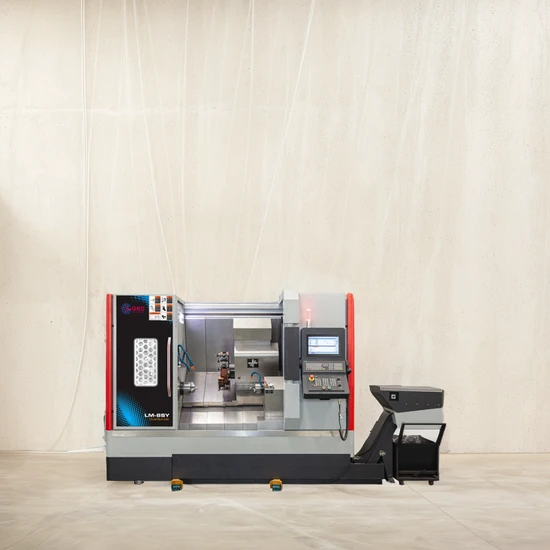

High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center
The High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center from Anhui Mingju Intelligent Equipment Co., Ltd. is a cutting-edge machine that has revolutionized the manufacturing industry. This CNC turning lathe offers unparalleled precision and efficiency in the production process, making it ideal for a wide range of operations including drilling, tapping, turning, and boring.
Designed for use in industries such as automotive, aerospace, medical, and electronics, this CNC turning lathe is capable of producing complex and high-precision components with ease. Its advanced components and working principle ensure superior performance and reliability, making it a valuable asset for any manufacturing operation.
Experience the power of precision and efficiency with the High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center from Anhui Mingju Intelligent Equipment Co., Ltd.
Product Parameters

Model	LM-8SY
Double spindle/single power turret
Number of axis	7 Axis(X+Z+Z1+C1+C2+Y+TD)
Max turning diameter on the bed	Ф600mm
Max processing length	500mm
Max processing diameter	Ф500mm
Main spindle nose	A2-6
Main spindle hole	Ф66mm
Bar hole diameter	Ф52mm
Main spindle speed	0-4500rpm
Main spindle Chuck size	8"(Hydraulic chuck)
Sub-spindle nose	A2-5
Sub-spindle hole	Ф56mm
Bar hole diameter	Ф46
Sub-spindle speed	0-6000rpm
Sub-spindle chuck size	6"(Hydraulic chuck)
Main Spindle power	11KW
Sub-spindle power	7.5KW
X1 axis power	3.1KW
Y1 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power	3.1KW
Hydraulic pump motor power	3.1KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Outer diameter shank	25mm
Inside diameter shank	Ф32mm
Living tools milling speed	0-4000rpm
X1/Y1/Z1/Z2 axis rapid speed	25m/min
X1 axis travel	600mm
Y1 axis travel	140mm(±70mm)
Z1/Z2 axis travel	500mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.002mm
X/Y/Z/Z1 axis position accuracy	0.003mm
Oil tank capacity	72L
Cooling tank capacity	180L
Machine weight	5600KG
Machine size	4100*2300*2300mm
Controller	Simens 828D/Fanuc/Syntec

Company Profile
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
For years, Anhui Mingju has been dedicated to providing high-quality CNC machining centers to customers worldwide. Our products include vertical machining centers, high-speed gantry machining centers, horizontal machining centers, and more, catering to various industries such as aerospace, automotive, and engineering machinery.
With 5 production bases across China and a global sales network, Anhui Mingju ensures top-notch products and services. We prioritize high-speed, high-precision, and high-efficiency intelligent equipment, meeting customers' needs effectively.
Choose Anhui Mingju for reliable CNC machine tools and production lines that guarantee quality and performance. Experience our comprehensive solutions and exceptional after-sales service that have satisfied customers in numerous countries and regions worldwide.
Let Anhui Mingju Intelligent Equipment Co., Ltd. serve you today!
Our Advantages
Professional CNC Machines Exporting Services
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Our company offers top-notch CNC machines exporting services with a focus on professionalism and expertise. With technical expertise from Italy and Taiwan, we ensure superior manufacturing capabilities.
Choose from a variety of payment terms including T/T, Western Union, L/C, and Paypal for your convenience. We guarantee high quality, safe materials, and competitive prices for all our products.
Whether you require a small order or a large one, we cater to all needs with quick responses and efficient service. Our transport options are safe and fast, ensuring your products reach you in a timely manner.
Additionally, we provide OEM design services to meet the unique requirements of all our customers.
Certifications
Packaging & Shipping
After Sales Service
Product Description
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Product Warranty and Support Services:
1) Our products come with a 12-month quality warranty starting from the arrival date at the destination port. We offer free fittings during the warranty period, excluding physical damage. Customers are responsible for returning damaged fittings at their own cost before receiving replacement parts. Any repairs or replacements needed after the warranty period will incur reasonable charges.
2) To provide efficient support, we offer online assistance via email, MSN/Skype, camera, video, telephone, and fax for installation, operation, adjustment, and maintenance issues.
3) In cases where online support is insufficient, we offer Door to Door service. Customers requiring on-site assistance must arrange visa formalities, prepay travel expenses, and provide accommodation for our engineers. Alternatively, customers can send their engineers for free technical training at our factory.
For more information and inquiries, please contact Anhui Mingju Intelligent Equipment Co., Ltd.
FAQ
Anhui Mingju Intelligent Equipment Co., Ltd.
Product Description
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.! We offer high-quality machinery with the following features:
Minimum Order Quantity: 1 set
Warranty: 1 year
Bearing Brand: NSK from Japan
Delivery Time: 15-30 days after payment
Warranty Handling: Free maintenance for product quality issues during the warranty period
Technical Personnel: Engineers can be sent for installation at buyer's site, with buyer covering expenses
For more information or to place an order, please contact us at Anhui Mingju Intelligent Equipment Co., Ltd.

---
