C-EPS Leave Factory Performance Test Machine

Product Description

C-EPS leave factory performance test machine

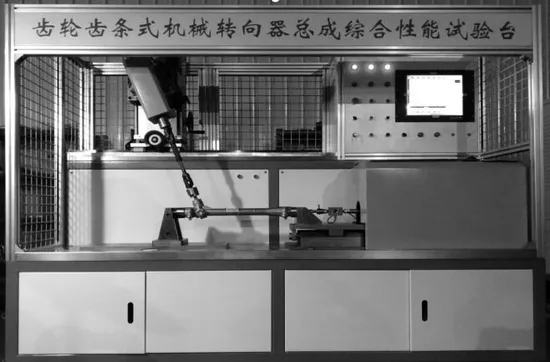

rack and pinion auto steering ASSY comprehensive performance testing machine
rack and pinion HPS comprehensive performance test machine
cycle ball auto steering ASSY comprehensive performance test machine
recirculating ball HPS comprehensive performance test machine
power steering pump comprehensive performance test machine

Input torque:	range ±50N.m,accuracy 0.5%;
Rack load	range ±15kN, accuracy 0.5%
Pressure	range 20MPa, accuracy 0.5%;
Flow	range 25L/min, accuracy 0.5%;
Input rotational angle	accuracy 0.018°;
Repeated test error	≤5%
lead time	30days

Major test items: Gradual rotational torque ( power, no power) Reverse transmission torque (points have power, no power) Torque sensor signal characteristics Speed/current characteristics Input/output torque characteristic Major data precision index: Input torque :range ±50Nm, Accuracy class: 0.5%; Rack load:range ±10000N, Accuracy class: 0.5%; Input angle:range Unlimited, Accuracy class: 0.018°; Rack stroke:range 300mm, Accuracy class: 0.005mm. Major test items: Total turns of steering gear; No-load rotation torque; Free clearance; Steering effort(torque with load); Torque-pressure characteristic ; sensitivity test; Internal leakage test; Outernal leakage test; Return ability test; Input/output characteristic; Input/output transmission ratio; Pressure difference test. draining Major data precision index: Input torque: ±50N.m, Accuracy 0.1%; output torque: Range ±2000N.m,Accuracy 0.5%; Input rotational angle : Range Unlimited Accuracy 0.018°; Output rotational angle: Range Unlimited Accuracy 0.018°. Major test items: Total turns of steering gear; No-load rotation torque; Free clearance; Steering effort(torque with load); Torque-pressure characteristic ; sensitivity test; Internal leakage test; Outernal leakage test; Return ability test; Input/output characteristic; Input/output transmission ratio; Pressure difference test. draining Major data precision index: The highest pressure test Run-in test Flow test(no-pressure & pressure) efficiency test Pressure switch characteristic test

---
