Wheat Trasport Machinery Grain Cart

Product Description

Product Description

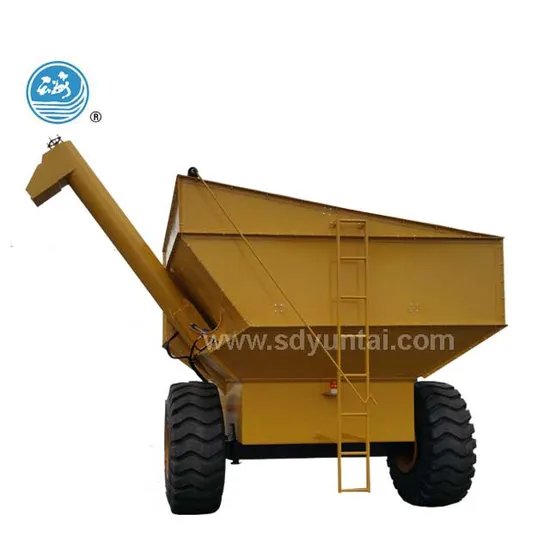

GRAIN CARTIt is used for rice transportation and automatic unloading. It uses a spiral conveyor instead of a self-dump and manual unloading. It is characterized by high operating efficiency and reasonable power utilization and can directly put rice into the warehouse. Mainly suitable for short-distance transportation in agriculture. The overall structure is reasonable, the appearance is beautiful, and it has the characteristics of convenient drag, saving time and labor and durable. The product adopts a combined structure of a transport vehicle and a spiral conveyor, and is equipped with a hydraulically adjusted conveying port, and the spiral conveying tube can be folded flat.

Item	GC-20
Capacity	20Ton
No of wheel	2
Width (mm)	5500
Length(mm)	6500
Height(mm)	5750
Height of the load(mm)	4000
Discharge capacity of the grains(lt./min)	3.5
No. of axles	1
Tire Size	26.5-2500
Steel rim
Max speed(km/h)	35
Linkage	Trailed
Weight(kg)	4800
Matched power (hp)	100-150

---
