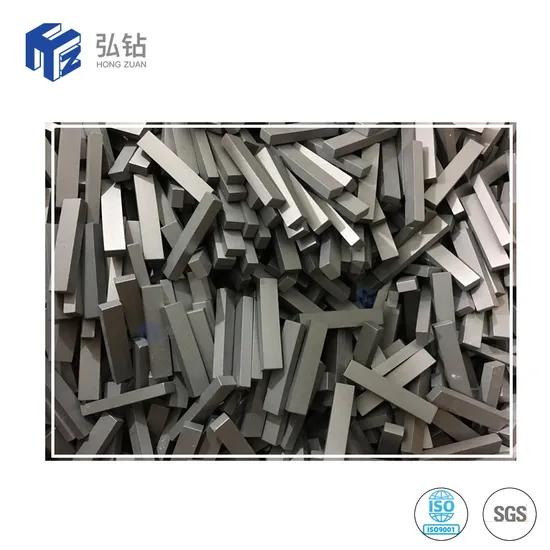

Hf3000 Tungsten Carbide Tiles for Stabilizer Hardfacing Wear Parts

Product Description

Feature:
Tungsten carbide tile for stablizer bit and TC radial bearing Tungsten carbide tiles for Radial Bearingscarbide tiles sheets TC bearing for stabilizerCarbide TC bearing tiles sheets for stabilizerCarbide TC bearing tiles
Advantage 1.We are factory2.ISO 9001:2015 Certificated3.With 100% tungsten carbide raw material4.Advanced technology, automatic pressing, HIP sintering and strict products quality inspection5.Free samples provided6.Make to customer's requirements7.Products could be precision grinded and polished8. Delivery in time9. Good after-sales service

Common size

Carbide tile size	L MM	W MM	H MM
1	6	5	3
2	6	5	4
3	13	5	3
4	13	5	4
5	20	5	4
6	25	5	3
7	25	5	4
8	Φ9.5		3
9	Φ6		3
10	Φ6		2
Note: The unlisted sizes are avaiabe upon customer's requirement.

Product Application
Our carbide are used as YG8D YG9D YG11C wear parts tungsten carbide block, wear resistance tungsten carbide block to reduce wearing away and protect the machine parts, etc.
Grade No of property for Stabilizer tips & carbide tile of hardfacing for TC radial bearing

Grade No	Density g/cm3	HRA	Bending Strength MPa	Coercive Magnetic Force KA/m	Cobalt (%)	Porosity	Non- compound Carbon
YG6	14.85~15.05	≥89.50	≥1800	12.0~15.9	4.9~5.9	A04 B02	C00E00
YG8	14.65~14.85	≥89.00	≥1900	10.2~15.0	6.5~7.7	A02 B02	C00E00
YG8C	14.55~14.75	≥87.50	≥2000	7.6~9.6	7.1~8.2	A02 B02	C00E00
YG10	14.40~14.60	≥88.0	≥2300	9.0~12.0	9.0~10.0	A02 B02	C00E00
YG11	14.30~14.50	≥87.00	≥2000	8.0~13.0	9.5~11.0	A02 B02	C00E00
YG11C	14.20~14.40	≥86.50	≥2400	6.0~8.0	9.5~11.4	A02 B02	C00E00
YG12	14.21~14.41	≥88.0	≥2500	7.0~11.0	11.0~12.0	A02 B02	C00E00
YG13C	14.10~14.30	86.5~87.5	≥2350	5.8~7.8	11.5~13.0	A02 B02	C00E00
YG15	13.95~14.15	≥86.50	≥2220	8.0~10.8	13.0~14.6	A02 B02	C00E00
YG16C	13.80~14.00	≥84.00	≥2480	4.8~6.4	14.1~16.4	A02 B02	C00E00
YN12	14.2~14.41	≥86.60	≥2350	6.0~8.0		A02 B02	C00E00

Hardfacing for integral blade stabilizers we can supply:
HF1000/HF2000/HF3000/HF4000
HF1000 Crushed tungsten carbide held in a nickel bronze matrix. The 3mm grain size ensures greater concentration of carbide which is ideal for soft formation drilling.
HF2000 Trapezoidal tungsten carbide inserts held in a sintered carbide nickel bronze matrix. This will give a greater depth of carbide coverage -- ideal for high deviation drilling in abrasive formations.
HF3000 Tungsten carbide inserts set in a power spray deposit ideal for abrasive formation. 97% bonding guaranteed, certified by ultrasonic report. Recommended for non-magnetic stabilizers.
TCI Tungsten carbide inserts (button type). The inserts have been developed to allow cold insertion and maintain close fit. A greater concentration of inserts on the bottom third of the blade and leading edge will increase surface contact to reduce wear in highly abrasive formations.
Company Profile
ZhuZhou HongTong Tungsten Carbide Co., Ltd.,specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products. Our products are utilized in industrial, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications. Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc . We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes,Finished Products and Packaging to ensure high quality products output.
We mainly produce Tungsten Carbide Ball and Seat, Agriculture wear parts plates, Carbide tips, Carbide tiles,
HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rod, Strips, PDC substrate, Weld on teeth,
Bushings, Wire Drawing Dies, Heading Dies, Seal Ring, Nozzles, and other customized carbide products.
Product packaging
FAQQ1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.
Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.
Q3: How to control the products quality? All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.
Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products
Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.
Q7: What's your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on

---
