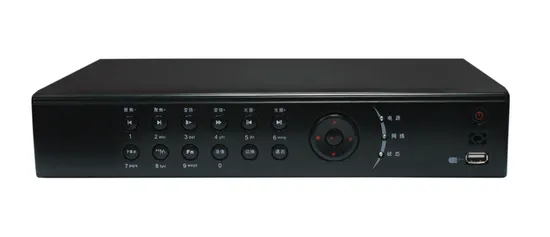

8-Channels Network DVR (SHJ-5800C)

Product Description

8-Channels Network DVR
Features:
1. Embedded Linux OS
2. Standard H. 264 compression
3.8 Ch. Video input, D1 real-time recording
4.8 Ch. Audio input
5.8 Ch. Alarm input and 2 Ch. Alarm output
6. Support VGA, CVBS output
7.8 Ch. Synchronous playback
8. Support mobile phone viewer (Windows Mobile/Symbian/iPhone/ Android/BlackBerry)
9. Embedded Web Server easy for remote monitoring.
10.1 SATA interfaces, support TB HDD
11. Support multiple DDNS (Oray, 3322, DynDNS)
12. IPTZ control by mouse and Controller
13.2 USB interfaces, support mouse and external storage device
14. User Friendly GUI, front panel, remote control and mouse
15. Two-way audio (Support BNC interface and 3.5mm interface)

Main Processor	High Performance Embedded Microprocessor
Operation System	Embedded Linux OS
Signal System	PAL/NTSC
System Resource	Recording, Playback, Remote Access
Operation Interface	Mouse, Front Panel, Remote Control
Video Split	1 / 4 /8 /9 Split Display
Video Resolution	D1
Video Playback Resolution	CIF
Bit rate Control	Dual stream
Image Control	6 Levels
Recording Speed	PAL: 25fps/channel, NTSC: 30fps/channel
Motion Detection	Configurable detection areas (22 × 18 blocks) and Sensitivity
Audio Compression	G.711
Recording Priority	Manual > Alarm > Motion Detection > Schedule
Local Playback	8 channel synchronous playback
Playback Search	Date, Time, Event, Channel
Video Storage	Local HDD
Backup Mode	USB
Video Input	8 channel BNC
Video Output	1 channel BNC, 1 channel VGA (800×600 1024×768 optional)
Audio Input	8 channel RCA
Two-way audio Input	1 channel RCA
Audio Output	1 channel RCA
Alarm Input	8 channel
Alarm Output	2 channel relay output (30V DC 2A, 125V AC 1A)
Ethernet Interface	RJ45 10M /100M Base-TX
PTZ Interface	1 x RS485
USB Interface	2 x USB2.0
HDD/SATA Interface	1 x SATA
Power Supply	DC12V±10%
Power Consumption	<15W (HDD not included)
Working Temperature	-10 ºC~ +55ºC
Working Humidity	10% - 90% RH
Atmosphere Pressure	86kpa -106kpa
Dimensions	314(L) x 230(W) x 57(H)mm
Weight	1.8Kg (HDD not included)
Mounting	Desktop Mount

---
