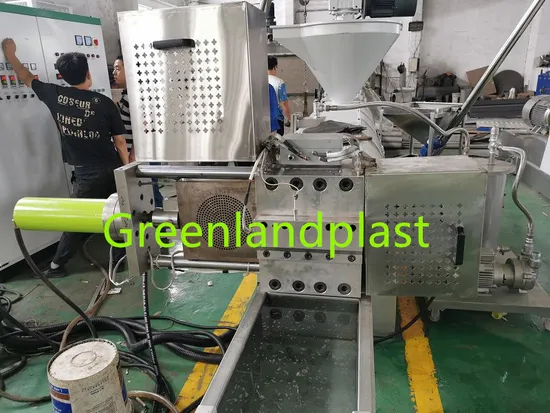

Plastic Granules Making Machine with Forced Degassing

Product Description

Product Description
Greenlandplast Plastic Recycling Granulating Machine Recycled Plastic Granules Making Machine Recycled Plastic Granulator This plastic pelletizing machine is designed by Zhangjiagang Greenlandplast Machinery Co., Ltd. It is specifically created for the recycling and granulating of clean and dry waste plastic. With its various feeding and cutting methods, it can also be used for film scraps materials.
The machine is versatile and can handle a wide range of materials including PE, PP, ABS, PS, PC, PA, PVC, and more. It is suitable for recycling and pelletizing different types and properties of plastic materials.
The extrusion system of the machine is equipped with a specially designed screw feeder or belt conveyor to efficiently feed the recycled plastic. The screw is designed to handle recycled materials and offers advantages such as fast and stable feeding, wear resistance, and natural exhaust holes. The machine also features a vacuum system to effectively drain water from the material.
The extruder of the machine uses a durable cast aluminum or ceramic heater. It is equipped with an automatic hydraulic screen changing system, ensuring cleaner and higher quality particles.
Features:
Recycles and granulates clean and dry waste plastic
Can be used for film scraps materials
Handles a variety of materials including PE, PP, ABS, PS, PC, PA, PVC, and more
Efficient and stable feeding with specially designed screw feeder or belt conveyor
Wear-resistant screw with natural exhaust holes
Vacuum system for effective water drainage
Durable extruder with cast aluminum or ceramic heater
Automatic hydraulic screen changing system for cleaner and higher quality particles
Available Materials: PE, PP, PS, ABS, PC, etc. crushed granules and plastic flakes.
Product Parameters
Technical date

Model	Screw Diameter(mm)	L/D	Motor Power	Capacity
GLP100	100	25-33:1	55kw	150-200kgh
GLP120	120	25-33:1	90/kw	250-350kgh
GLP140	140	25-33:1	132kw	400-500kgh
GLP160	160	25-33:1	160kw	550-650kgh
GLP180	180	25-33:1	185kw	650-800kgh
GLP200	200	25-33:1	250kw	800-1000kgh

Detailed Photos
Loading System The material is fed to the extrusion system of the Zhangjiagang Greenlandplast Machinery Co., Ltd through either a screw feeder or a belt conveyor. For added convenience, the belt conveyor can be equipped with an optional metal detector, ensuring the highest level of product quality and safety.
Quantitative Feeding System
The feeding speed is controlled by an inverter, allowing for adaptation to different material properties and ensuring the extruder operates smoothly.
Equipped with a sensor device, the feeding system is synchronized with the loading system, enabling intelligent automatic feeding. It stops feeding when the material is full and automatically loads when the material is not full.
For more information, please visit Zhangjiagang Greenlandplast Machinery Co., Ltd.
Extrusion System
Extrusion System The extrusion system from Zhangjiagang Greenlandplast Machinery Co., Ltd is specifically designed for plastic recycling pelletizing. The screw barrel is made of 38CrMoAl material with nitrided treatment, ensuring durability and longevity. The surface of the screw is sprayed with an alloy wear-resistant layer, further enhancing its wear resistance.
The barrel is equipped with an exhaust section, and the extruder features a vacuum exhaust system. This combination allows for high output, excellent dehydration and exhaust effect, and superior wear resistance.
The heating system of the extrusion system utilizes either cast aluminum heaters or ceramic heaters. Each heating zone has an independent intelligent temperature control system and is equipped with forced air cooling. This ensures convenient and accurate temperature control, resulting in high-quality pellets.

Screen Change Filter System The screen change filter system by Zhangjiagang Greenlandplast Machinery Co., Ltd is designed to enhance the quality of pellets by filtering out small impurities in the material. It features a plate-type hydraulic automatic screen changer that effectively removes impurities and improves the overall quality of the pellets. The system is equipped with an automatic pressure alarm device, ensuring efficient and reliable operation.
For customers with specific requirements, we also offer the option to equip the system with a column hydraulic screen changer or a non-net screen changer. These additional features further enhance the filtering effect and make the operation even more convenient.
Pelletizer Cutting System Zhangjiagang Greenlandplast Machinery Co., Ltd offers a high-quality waste plastic recycling pelletizing/granulator with an efficient cutting system. Our pelletizing system is designed to meet the reading habits of English-speaking natives, ensuring a smooth and beautiful pelletizing effect.
With our pelletizer cutting system, you can easily operate the machine and save on labor costs. The water ring pelletizing system is known for its user-friendly nature and excellent results.
For materials with special properties or based on customer preferences, we provide additional options to enhance the pelletizing process. You can choose from water-stretching and pelletizing, automatic strand-stretching and pelletizing, or underwater pelletizing systems.
Vibration & Blower Drying System The Vibration & Blower Drying System by Zhangjiagang Greenlandplast Machinery Co., Ltd is a revolutionary method for dewatering and drying particles. With its unique combination of vibration dewatering and a powerful dewatering fan, this system offers exceptional performance while saving power consumption and reducing noise.
Designed to meet the reading habits of English-speaking natives, our Vibration & Blower Drying System provides excellent particle dewatering and drying effects. The vibrations efficiently remove excess moisture, while the dewatering fan ensures a thorough and quick drying process.
With this system, you can achieve optimal drying results while minimizing energy usage. The low noise operation ensures a comfortable working environment, making it suitable for various industries.
Choose the Vibration & Blower Drying System by Zhangjiagang Greenlandplast Machinery Co., Ltd for efficient, low-noise, and effective particle dewatering and drying. Experience the difference in performance and power savings today!

Cutting & Vibrator & Hopper Storage The Cutting & Vibrator & Hopper Storage system by Zhangjiagang Greenlandplast Machinery Co., Ltd is designed to efficiently transfer pellets to the storage tank. Made of high-quality stainless steel, both the air conveyor pipe and the tank ensure durability and longevity. The pipe surface is equipped with sound-absorbing cotton, effectively reducing noise during operation.
Packaging & Shipping

---
