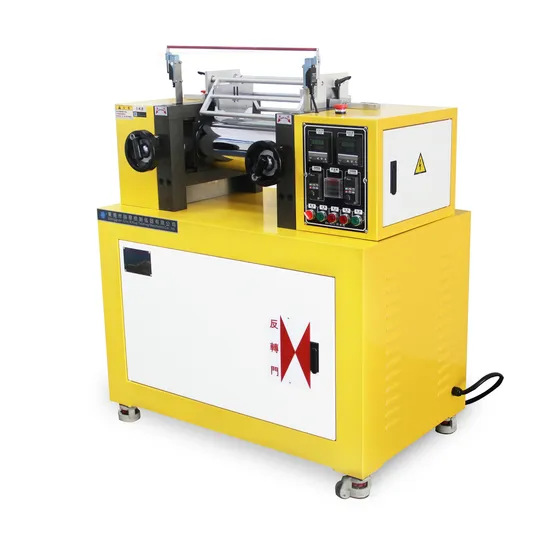

Lab Open Mixing Mill Rubber Mixing Two Roll Mill

Product Description

Lab Two Roll Mill ApplicationThe lab two roll mill is used to mix the raw material and additional agents uniformly for testing, and apply the experiment results and its ratio in the production line to satisfy the requirements of quality and color which specified by the customer.
Lab two roll mill is widely used in rubber, plastics industries. Such as polyolefin, PVC, film, coil, profile production and polymer blending, pigments, masterbatch, stabilizers, stabilizers and so on. The main purpose is to test raw materials's physical properties change and contrast after mixing. Such as color dispersion, light transmission, substance table.

Technical Parameter Of XH-401CE lab two roll mill
Applicable materials	PP, PE, PVC, rubber, etc.
Mixing capacity	0.5-1kgs or designated
Roller diameter	120mm or designed
Roller width	350mm or designed
Roller gap	0.1 - 5mm (adjustable)
Speed of roller	18r/min
Heating mode	electrical heating
Safety device	protective cover, safety lever, reverse door, emergency stop button
Motor	1HP (2 Sets)
Power supply	380V/50Hz/3 phases or Customerized

Main Features of lab two roll mill
1) Built-in heater, together with LED temperature controller and high-precision .
2) Taiwan Bangcheng motor, low noise, stable operation and good durability.
3) A lot safety devices guarantees the operator's safety .
4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer's specifical requirements.
Detailed Images
1. Alloy steel roller, High wear resistance, no deformation, high overall hardness, 0-to-0 grinding
2. Rubber and plastic is different. We will suggest the roller to you according to your material.
3. The size of the rollers and equipmentcan be increased according to customer's requirement.
1. Safety Device: Reversible rollers (by kicking at the door of the machine). Safety switch. Protective cover.(It can add some other safety device according to your requirements)
2. It adopts Japanese RKC, LED temperature controller and high precision sensor, Accurate and stable temperature, Speed of roller are easy to control by two frequency converter.
Picture is made of PP and Red masterbatch
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 24 hours and solution provide within 2 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.Onsite Service
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information
A.Product Instruction;
B.Product operation instructionvideo;
C.Experiment Test (test application, test report)
24-hour Online contact
Free software upgrades
Free information
A.Product Instruction;
B.Product operation instructionvideo;
C.Experiment Test (test application, test report)
Device Problem Handling
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door service
