Vertical Stringer Wooden Pallet Nailer Wood Block Pallet Nailing Machine

Product Description

Product Description
Operation:

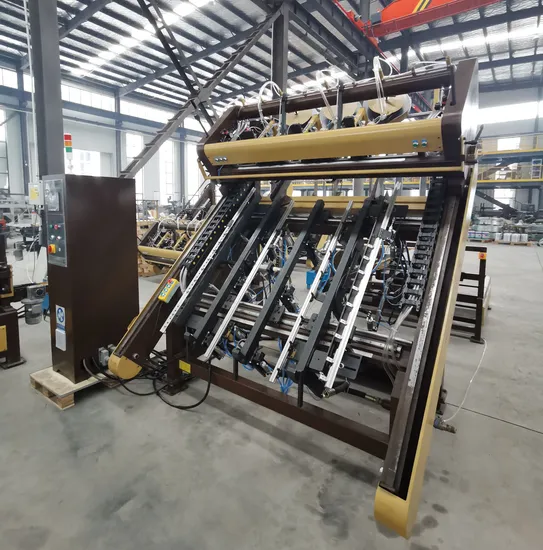

The machine will auto clamp after the worker put the wood pallet bottom bean in machine. Then put wood pallet plate and start to nail automatically. When complete it, the work need flip the other side, put the plate in, then nailing it. Wood pallet nailing machine is very easy to operate, efficient, with low labor cost.
Operation program:
Touch screen control, advanced programming, Feeding mechanism and nailing machine multi-axis linkage at the same time when working. It achieve fast and efficient nailing work. One more thing, it could switch different program basis on different material plate to produce non-standard pallet.
Automatic stacking:
It will form a line with nailing machine, after nailing, flip the wood pallet to stacking platform. It will be achieve the effect of automatic collect wood pallet and easy to transport. It save labor and operation time.
Option:
Based on stacking platform, it could increase transport platform, achieve stacking 4-5 stack. Detailed Photos

Product Parameters
Pallet nailer

Model No.	KPN0813
Operational model	Pneumatic operation
Pallet length	600-1300mm
Pallet width	800-1300mm
Power	3kw
Nail gun brand	Bostitch
Nail gun Qty.	3pcs
Nail length	2.3*70mm
Air pressure	0.8Mpa
Pneumatic components	Airtac
Control system	Siemens PLC
Overall size	2400*2250*2500mm

Pallet stacker

Model No.	KPS0813
Operational model	Pneumatic operation
Pallet length	600-1300mm
Pallet width	800-1300mm
Power	1.5kw
Output efficiency	4-7pcs/min
Air pressure	0.8Mpa
Pneumatic components	Airtac
Overall size	3008*1875*3112mm

Packaging & Shipping
After passed the quality inspection, the machine will be wiped with biodegradable anti-rust oil to protect from the humid sea air. Then use PE film packaging.
FAQ
1) Q: What's the MOQ?
A: One set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can.
3) Q: What's the payment terms?
A: T/T 30% as deposit and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. KINGMARKS is our brand.
5) Q: How long is the warranty period?
A: One year except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.

---
