Product Description
Product Description

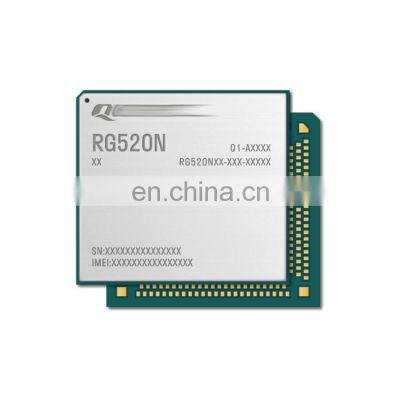

DescriptionOverview● The RG520N is a series of 5G sub-6 GHz LGA modules optimized specially for IoT and eMBB applications. Based on the 3GPP Release 16 specification, it supports both 5G NSA and SA modes with Option 3x/3a and Option 2 network architectures, and is backwards compatible with 4G/3G networks. It is pin-to-pin compatible with Quectel's 5G RG50xQ series and LTE-A Cat 12 EG512-EA.● The RG520N series contains two variants: the RG520N-EU and the RG520N-NA. It supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BDS, Galileo, and QZSS), and the integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate, and more dependable positioning capability.● The module can meet a variety of customer application demands for high speed, large capacity, low latency and high reliability. A rich set of Internet protocols, industry-standard interfaces (USB 2.0/3.0/3.1, PCIe 3.0, PCM, UART, etc.) and abundant functionalities (USB drivers for Windows 7/8/8.1/10/11, Linux and Android) allow the module to serve a wide range of IoT and eMBB applications such as business routers, home gateway, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and video security systems.Key Features● 5G/4G/3G multi-mode module with LGA form factor, optimized for IoT and eMBB applications● Worldwide 5G and LTE-A coverage● 5G NSA and SA modes● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment● Feature refinements: DFOTA and VoLTE (optional)RG520N-EURG520N-NAREGION/OPERATOREMEA/APAC①/BrazilNorth AmericaFREQUENCY BANDS5G NR NSAn1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/ n77/n78n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/ n66/n70/n71/n77/n785G NR SAn1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/ n77/n78n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/ n66/n70/n71/n77/n78DL 4 × 4 MIMOn1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/ n77/n78n2/n5/n7/n12/n13*/n14/n25/n26*/n29/n30/n38/n41/ n48/n66/n70/n71/n77/n78LTE-FDDB1/B3/B5/B7/B8/B20/B28/B32B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/ B71LTE-TDDB38/B40/B41/B42/B43B38/B41/B42/B43/B48LAA-B46DL 4 × 4 MIMOB1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43B2/B4/B5/B12/B13/B14/B17/B25/B26/B29/B30/B66/B41/ B42/B43/B48/B71WCDMAB1/B5/B8-GNSSGPS/GLONASS/BDS/Galileo/QZSSGPS/GLONASS/BDS/Galileo/QZSSCERTIFICATIONSREGULATORYGlobal: GCF* Europe: CE Australia/New Zealand: RCMGlobal: GCF* North America: PTCRB* America: FCC* Canada: IC*CARRIERTBDTBDOTHERSRoHSRoHSDATA RATE5G SA Sub-6 GHz2.4 Gbps (DL)/900 Mbps (UL)2.4 Gbps (DL)/900 Mbps (UL)5G NSA Sub-6 GHz3.4 Gbps (DL)/550 Mbps (UL)3.4 Gbps (DL)/550 Mbps (UL)LTE1.6 Gbps (DL)/200 Mbps (UL)1.6 Gbps (DL)/200 Mbps (UL)WCDMA42 Mbps (DL)/5.76 Mbps (UL)-ELECTRICAL FEATURESSUPPLY VOLTAGE RANGE (V)3.3–4.4 V, typ. 3.8 V3.3–4.4 V, typ. 3.8 VPOWER CONSUMPTION (μA)TBDTBDRG520N-EURG520N-NAWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
