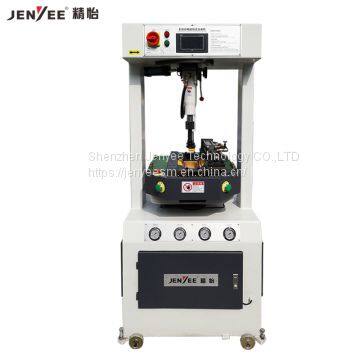

JY-989D one station full-automatic walled shoe attaching machine for sport shoes automatic shoe sole edge attaching machine

Product Details

Product Description

Product Description
Product Show
JY-989E shoe machine for sport shoe hydraulic outsole attaching press machine shoe side attacting machine
Quick Details

Brand Name:	JENYEE	Dimension(LWH):	120012801920mm
Power(W):	2KW	Voltage:	380V
Weight:	1500KG	Type:	Hydraulic system
Application:	Solo Attaching Machine	Applicable:	all kinds of shoes
Production Capacity:	2500pairs/8hr	Warranty:	1 Year

Product Application
This machine adopts full oil pressure system design, press bottom, pressure edge, front and rear fastening, can be completed at one time, or can be completed separately according to needs, high pressure, firm fit.
Product Description

Computer control center
Computer control center is the machine circuit control unit, operation of it is carried out through function buttons displayed on touching screen
Pressing head rod & Swing arm structure
The swing structure is connected with the pressing rod seat, when machine is running, swing structure pull and push the seat correspondingly the pressing rod will rotate and change its position to make it convenient for taking out or putting in the shoe model. There are pressing rods of front one and rear one, to fit for different shoe last the latter is installed with screw adjustment device, while the former has replaceable pressing head. Their height is self-adaptable for different shoe last.
Large seat
Pressing operation buttons need to be pressed at the same time to make the machine work

Oil meter & adjusting valve
High quality pressure oil meter are introduced, pressure system,Value is indicated clearly, which makes commissioning and repairing simple.
Oil system
Devices of Taiwan brands are introduced ,CML oil pump, motor, offer big horsepower with low noise. Valve of Taiwan brand are introduced CML hydraulic magnetic valve adjusting system Offer more precise control over circuit and oil flow.

Computer control center

Computer control center is the machine circuit control unit, operation of it is carried out through function buttons displayed on touching screen

Pressing head rod & Swing arm structure

The swing structure is connected with the pressing rod seat, when machine is running, swing structure pull and push the seat correspondingly the pressing rod will rotate and change its position to make it convenient for taking out or putting in the shoe model.
There are pressing rods of front one and rear one, to fit for different shoe last the latter is installed with screw adjustment device, while the former has replaceable pressing head. Their height is self-adaptable for different shoe last.

Large seat

Pressing operation buttons need to be pressed at the same time to make the machine work

Oil meter & adjusting valve

High quality pressure oil meter are introduced, pressure system,Value is indicated clearly, which makes commissioning and repairing simple.

Oil system

Devices of Taiwan brands are introduced ,CML oil pump, motor, offer big horsepower with low noise.
Valve of Taiwan brand are introduced CML hydraulic magnetic valve adjusting system Offer more precise control over circuit and oil flow.

Brief operating proc
1.Power cable should be connected on socket meet ECC standards with magnetic switch of 380v.
2.Please fill 90-100 litters of 68# or 46# hydraulic oil into oil tank.
3.switch on main power, then turn on pump switch, then select mode, then adjust pressing time.
4.Put the shoe last in the large seat properly, then adjust relevant component properly.
5.To adjust distance between front and rear rod, adjusting distance between top and bottom part of the rear pressing head by screwing the rod.
6.Step the pedal switch or press the two green button at the same time to start the machine for pressing operation.
