Nose Bar Auto Foldable Face Mask Machine Production Line

Product Description

Nose Bar Auto Foldable Face Mask Machine Production Line
Equipment Introduction :

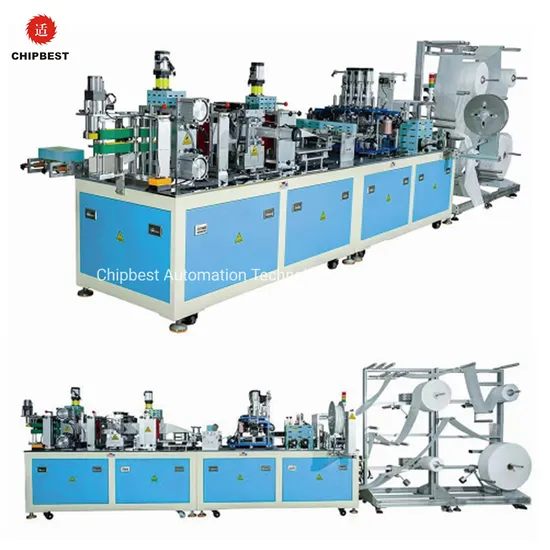

This N95 Foldable Mask Making Machinery is applicable to the full-automatic production line for N95 (KN95) mask production,The equipment cooperates with each process through positioning system and tension system. In order to meet the market demand, the mold can be simply changed to adapt to the production of various 95 masks.The whole machine is composed of material rack part, nose line group, nose line cutting group, one-time forming group, ear belt welding group, folding group, edge sealing group, mask cutting group, discharge group, waste collection group, etc. it is controlled by PLC, powered by servo motor, and finished by ultrasonic welding. N95 Mask Manufacturing Machine Picture :

Equipment Parameters :

Number	Item	Number of single machines
1	Touch screen	1
2	Programmable logic controller	1
3	Servo motor	10
4	Servo motor	7
5	Servo motor	2
6	Planetary reducer	1
7	Welding Ear Ultrasonic	2
8	Edge sealing ultrasonic	1
9	Printing Ultrasonic	1
10	Power line	1
11	AC contactor	1
12	Air switch with electricity leakage protection	1
13	Filter	1

Machine Structure Diagram :

Action Flow :
N95 Mask Manufacturing Machine consists of the following equipment: Six layer raw material loading mechanism, nose bridge & embossing process, coding (optional or laser marking as required), welding ear belt process, cost cutting & waste disposal process.
Raw material loading (four or five layers of cloth shall be placed according to the product requirements) → pushing nose bar → body knurling → coding (code spraying or laser marking shall be selected according to the demand) → left and right ear belt welding → folding → edge sealing → finished product cutting → finished product discharge.

N95 Machine Detailed Photos Display:

Technical Parameters :

No.	project	Specification Parameters	remarks
1	Producing Speed	100±10pcs/min
2	Total electric consumption	1. Max 26KW 2. (ultrasonic 2.6KW*3+4.2KW*1+ other 14KW)
3	Control system	PLC (programmable logic controller)
4	Compressed air pressure	≥0.5~0.7MPa
5	Voltage	220V,16A, 50/60Hz
6	Machine size(mm)	1. 2350(L)*1440(W)*1800(H) 2. 2100(L)*1500(W)*1800(H) 3. 2260(L)*1060(W)*2100(H)
7	Machine weight	2200 kg
8	Air pipe	Φ12 air pipe, connect with triplet, and reserve 2 interfaces

Raw Materials :
non-woven fabrics, hot air cotton, melt blown cloth (clients can prepare the material themself, or purchased from us)

Controller Display :

Package & Shipping:
More info needed, pls contact Walker He

---
