HIGHJOIN flowmeter Digital Output Fluid measurement Magnetic Flow meter

Product Description

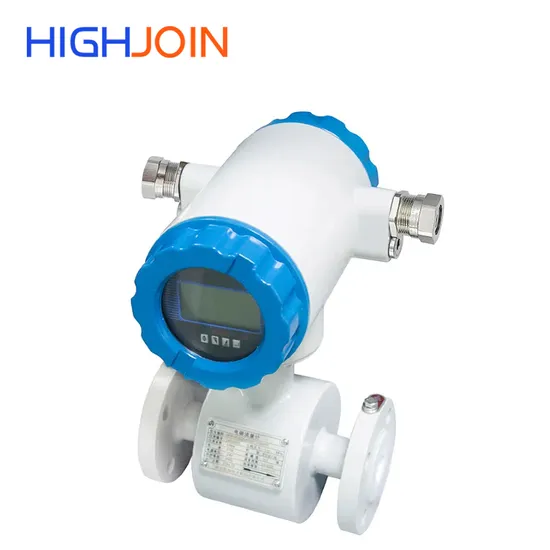

HFM100 Electromagnetic Flowmeter is made of a sensor and a converter. It works base on Faraday's law of electromagnetic induction to measure conductivity of liquid or liquid-solid medium. It requires the conductivity should be greater than 5µS/CM (the conductivity of tap water and raw water is 100-500µS/CM ). It can be used for many mediums like acid, alkali, saline solution, paper pulp, ore pulp etc but the medium can not much conclude ferromagnetic substance or a mass of bubbles. This product is a main flow instrument for measuring conducting liquid, which can be widely used for flow measurement in the fields of water conservancy, municipal administration, chemical, food, pharmacy, papermaking, metallurgy, electric power, environment protection, etc. Product Features
·Clear LCD display screen, display instantaneous flow and cumulative flow respectively
·Advanced excitation technology, brief excitation circuit with stability and reliability
·Pioneering fuzzy algorithm technology applies to measurement of electromagnetic flowmeter with the performance of artificial intelligence
·Empty and full pipe measurement technique to avoid false alarms
·With low conductivity measurement function
·Prompt response design for high resistance, undistorted collection of weak signals and prompt reaction for flow change , the range rate can achieve 100:1
·Various optional output communication interfaces
Product Parameters

Aperture Diameter	DN10-DN2400
Flange	Meet GB/T9119-2000standard carbon steel (stainless steel optional),other standards can be customized
Rated Pressure Grade	DN10~DN600, 1.0 1.6 2.5 4.0MPa; DN700~DN2000, 0.6 1.0 1.6MPa
Lining Material	Chloroprene Rubber (CR), Teflon (PTFE), Polyurethane Rubber (PU), Polyethylene (PE), PFA, etc.
Electrode	Stainless steel 316L, Hastelloy (HB and HC), Titanium, Ttantalum, Platinum
Ingress Protection	IP68, IP65 for Customized
Accuracy Grade	0.5 grade
Medium Temperature	Sensor: -25~180ºC, Transmitter: -10~80ºC
Measuring Flow Velocity	Less than 20m/s
Supply Voltage	24VDC, 220VAC
Output	Current 4~20mA, Pulse, Frequency, RS485, HART, Profibus-PA

Ordering Guide

Item NO.

Code

Illustration

HFM100

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Electromagnetic Flowmeter

Installment Way

S - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - D - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - C - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - -

Flange Type Camping Type Inserted Type

Inside Nominal Diameter

15 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - … 2400 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

DN15 DN20 … DN2400

Electrode Form

F - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Standard Fixation

Electrode Material

S6 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - HC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - TI - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - TA - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - CW - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Stainless Steel 316L Hastelloy C Titanium Tantalum Tungsten carbide Electrode

Lining Material

CR - - - - - - - - - - - - - - - - - - - - - - - - - - - FE - - - - - - - - - - - - - - - - - - - - - - - - - - - PU - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Chloroprene Rubber Teflon Polyurethane

Measuring Tube Material

S4 - - - - - - - - - - - - - - - - - - - - - - - S6 - - - - - - - - - - - - - - - - - - - - - - - TG - - - - - - - - - - - - - - - - - - - - - - -

Stainless Steel 304 Stainless Steel 316L Carbon Steel

Flange Material

S4 - - - - - - - - - - - - - - - - - - - - - - S6 - - - - - - - - - - - - - - - - - - - - - TG - - - - - - - - - - - - - - - - - - - - -

Stainless Steel 304 Stainless Steel 316L Carbon Steel

Cover Material

S4 - - - - - - - - - - - - - - - - - - S6 - - - - - - - - - - - - - - - - - - - TG - - - - - - - - - - - - - - - - - -

Stainless Steel 304 Stainless Steel 316L Carbon Steel with Stoving Varnish

Paired Flange

0 - - - - - - - - - - - - - - - - 1 - - - - - - - - - - - - - -- - -

Without With

Ground Ring

0 - - - - - - - - - - - - 1 - - - - - - - - - - - -

Without With

Rated Pressure

10 - - - - - - - - - - 16 - - - - - - - - - 40 - - - - - - - - - -

10bar 16bar 40bar

Medium Temperature

E - - - - - - - - - - H - - - - - - - - -

Less than 80ºC Less than 180ºC(Separated Type)

Convertor Type

I - - - - - - - - - - - D - - - - - - - - - - -

Integrated Type Separated Type

Output Signal

P- - - -- - - - A- - - -- - - - F - - - -- - - - J - - - -- - - -

Pulse 4~20mA Frequency RS485

Supply Voltage

0- - - - - - 1- - - - - - 2- - - - - -

220V AC 24V DC Battery Powered

Explosion-proof Grade

0 Exd

Non-explosionproof Explosion-proof Type

Reference Item:HFM100-S-20-F-S6-FE-S4-S4-TG-0-0-16-E-I-A-0-0

Other Recommendations
FAQ
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on sensor for 10 years.
2. Q: What's your quality control system?
A: MC, ISO9001, CE Certificated.
3. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
4. Q: What is lead time of your product?
A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.
5. Q: Do you provide customized products?
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.
6. Q: What is your MOQ?
A: We have no MOQ limit, small quantity order is acceptable.

7. Q: What's the transport?
A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.
8. Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU.

---
