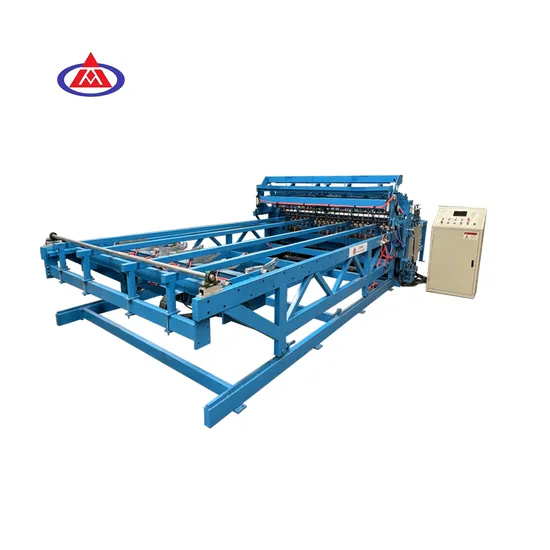

Fully Automatic BRC Welded Roll Mesh Welding Machine Brand New Condition

Product Description

Product Description
3.0-6.0mm Brc Welded Wire Mesh Machine
This BRC welded wire mesh machine is mainy used to produce BRC roll mesh or BRC mesh panels,rather popular in the markets.
Detailed Photos
Line Wire Straightening Device Line Wire Threading Mouth Pulling Mesh Car
Electric Hopper Automatic Rolling Mesh Device Wire Pay-off
Product Parameters

Item	WZ-1200A	WZ-1600A	WZ-2400B	WZ-2500A
Number of Electrodes	24	32	24	48
Max.Mesh Width	1200mm	1600mm	2400mm	2500mm
Wire Diameter	2.5-6.0mm	2.5-6.0mm	3.0-6.0mm	3.0-6.0mm
Cross Wire Space	50-250mm	50-250mm	100-250mm	50-250mm
Line Wire Space	50-250mm	50-250mm	100-250mm	50-250mm
Finished Products Way	Roll Mesh/Both Roll Mesh and Plate Mesh
Pulling Mesh Way	Servo Motor
Electric Capacity	125KVA*3	125KVA*4	125KVA*4	125KVA*6
Welding Speed	50-80t/min	50-80t/min	50-80t/min	50-80t/min
Control System	PLC & Touch Screen

Similar Machine
Fully Automatic Reinforcing Mesh Welding Machine
This Machine is mainly used to produce steel wire diameter 5.0-12.0mm,material round steel wires and ribbed steel wires,mesh size:100*100-300*300mm reinforcing mesh panels.

Item	WZ-2000A	WZ-2500A	WZ-3000A	WZ-3300A
Number of Electrodes	20	24	30	32
Max.Mesh Width	2500mm	2500mm	3000mm	3300mm
Wire Diameter	5.0-12.0mm	5.0-12.0mm	5.0-12.0mm	5.0-12.0mm
Mesh Length	3-12m	3-12m	3-12m	3-12m
Cross Wire Space	100-300mm	100-300mm	100-300mm	100-300mm
Line Wire Space	100-300mm	100-300mm	100-300mm	100-300mm
Electric Capacity	200KVA*10	200KVA*12	200KVA*15	200KVA*16
Welding Speed	40-60t/min	40-60t/min	40-60t/min	40-60t/min
Control System	PLC control and Touch Screen

Popular Fence Mesh Welding Machine
1. Our fence mesh welding machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding .
2. Per-cut line wires are fed by hand.Per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the step motor control ,brake motor wheels and the cross wire will fall automatically from the hopper.
3. Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.
4. The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
5. Pulling mesh way adapts step motor according to the setting parameters into the touch screen,ensures the precision of pulling mesh.

Item	WZ-2000A	WZ-2500A	WZ-3000A
Number of Electrodes	40	48	60
Max.Mesh Width	2100mm	2500mm	3000mm
Welding Wire Diameter	3.0-6.0mm/5.0-8.0mm	3.0-6.0mm/5.0-8.0mm	3.0-6.0mm/5.0-8.0mm
Mesh Length	500-3000mm	500-3000mm	500-3000mm
Cross Wire Space	50-250mm	50-250mm	50-250mm
Line Wire Space	50-250mm	50-250mm	50-250mm
Electric Capacity	125KVA*5	125KVA*6	125KVA*8
Welding Speed	50-70t/min	50-70t/min	50-70t/min
Control System	PLC control and Touch Screen

Fully Automatic Steel Wire Mesh Panel Welding Machine
1. Our this mesh welding machine,the line wire feeding from coil automatically,which is more convenient and save labor,the total production line will need two workers ok;
2. The welding transformers is our new model and installed with water cooling system,which prolong the service life,and this water is not wasted, can be recycled all the time;
3. Our welding pressure adopts mechanical spring,easy to adjust,which save the cost and maintenance cost is lower than other pneumatic model;
4. The cross wires are fed from pre-cut,which adopts step motor driven from the special hopper one by one;
5. Every welding transformer is controlled by single microcomputer control ,cent-control welding one time pressure ,which is more intelligentialized.The controller will connect with the touch screen , and we can set the welding current and welding time on the touch screen ,which is very convenient,this machine will save energy greatly,in the theory,the production line will need only 12 degree electricity;

Item	WZ-1000A	WZ-1500A	WZ-2000A	WZ-2500A
Number of Electrodes	10	15	20	24
Max.Mesh Width	1000mm	1500mm	2000mm	2500mm
Wire Diameter	2.5-6.0mm	2.5-6.0mm	3.0-6.0mm	3.0-6.0mm
Cross Wire Space	50-250mm	50-200mm	50-200mm	50-250mm
Line Wire Space	100-250mm	100-250mm	100-250mm	100-250mm
Finished Products Way	Plate Mesh
Pulling Mesh Way	Servo Motor
Electric Capacity	125KVA*2	125KVA*2	125KVA*3	125KVA*4
Welding Speed	50-80t/min	50-80t/min	50-80t/min	50-80t/min
Control System	PLC and Touch Screen

Certifications
Packaging & Shipping
Company Profile
Anping Wanzhong Wire Mesh Products Company entered the wire mesh industry in 2006, specializing in the manufacturing of various types of Fence Mesh Welding Machines, Reinforced Mesh Welding Machines, Automatic Construction Mesh Welding Machines, Breeding Mesh Welding Machines, Chain Link Fence Machines,Cattle Fence Machine, Nail Making Machines, Wire Drawing Machines, Barbed Wire Machines, Razor Barbed Wire Machines,Wire Straightening and Cutting Machine,etc.Wanzhong Company has its own professional R&D team,customized design and production can be carried out according to the special requirements of customers,and has already won fifteen national patents until January 31,2022. It has successfully passed ISO9001-2008,CE certification and SGS certification,and it is recognized as a national high-tech enterprise by our government,and our company credit rating is "AAA".Our machines have already exported to more than 40 countries, including USA,Russia,Algeria,Malaysia,the United Arab Emirates, Kuwait, Yemen, Oman, India, Uzbekistan, Kazakhstan, Iraq, Mexico, Tunisia, Kenya, Tanzania and Egypt.Wanzhong Company has its own professional and experienced after-sales service team, 365 days 24 hours to provide you with the most professional and intimate installation, guidance and maintenance services.
After Sales Service
Special technical engineers supply urgent technical support and consulting,at the same time,we assign one technical engineer to install and debug the machine according to our clients, then our clients will assume visa,round-trip tickets,eating,accommodation costs and ensure they the personal health and property safety, and pay 120 salaries per day. Guarantee: Two years. Within two years after the date when the goods reach the destination port if the parts (not including easily damaged parts ) are broken for reasons which are not human, the seller will change the same with a new one free of cost. but the buyer will pay for postage.Equipment Program part life-long maintenance.

---
