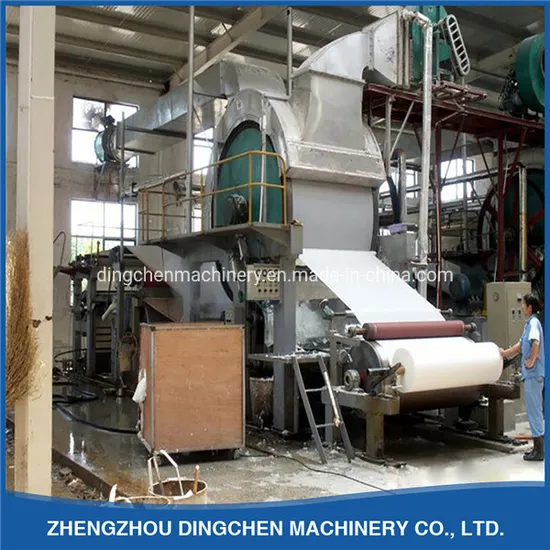

1092mm High Speed Toilet Tissue Making Machine

Product Description

1092mm high speed toilet tissue paper making machine
1.Technical parameters
Output paper : tissue paper ;
Raw material : waste paper,wood pulp
Capacity :2ton per day ;
Net paper width :1200mm ;
paper gram weight :15-30g/m2;
Rail gauge :1800mm ;
Width of cylinder :1450mm ;
Working speed: 90-120m/min
Designing speed: 150m/min
Drive way :AC frequency converter , section drive ;
2.main structure and characteristic of main part
Cylinder mould section:Ф1250mm×1450mm×1800mm stainless steel cylinder mould 1 pcs , Ф380mm×1450mm×1800mm couch roll 1 pcs , rubber hardness 38ºC±2
dryer section:Ф2000mm×1450mm×1800 mm cast iron dryer 1 pcs , Ф350mm×1450mm×1800 mm touch roll 1 pcs ,rubber hardness 90ºC±2,double layer exhaust hood , pneumatic loading device .
winding section:Ф400mm×1450mm ×1800 mmwinding cylinder 1 pcs , 250 speed reducer 1 set
drive&control section :AC frequency converter , section drive
3.Main eqiupment

NO.	Item	Function
1	Stainless steel cylinder mold	Extract the pulp fiber to felt
2	Alloy dyer cylinder	dry the wet paper
3	Exhaust hood of dryer cylinder	To cover the dryer and collect the hot & moist air
4	Φ600 Axial-flow ventilator	To ventilate and pull out the hot & moist air in the exhaust hood
5	Roots vacuum pump	To provide the vacuum force for the suction box
6	Vacuum suction box	To absorb the water in the wet paper
7	Air compressor	To provide the compressed air for the pneumatic device

8	Frequency conversion controlling cabinet	To control the running speed of the machine
9	2m3 High concentration hydra-pulper	break the recycle paper into pulp
10	0.9m2 High frequency vibrating screen	To separate and remove the small impurity in the pulp
11	Φ500mm impeller	To stir the pulp and make sure the pulp and water mixed well
12	0.5m2 centrifugal screen	To make the pulp finer
13	35m3 Bleacher (include drive part)	To whiten the pulp through bleaching
14	Φ250mm pulp refiner	To make the pulp much finer and smoother
15	Low concentration sand remover	To remove the sand and impurity in the water and pulp
16	Pulp pump	To provide the pulp for the needed machine
17	Electrical operation cabinet	To control the machines run or stop
18	1T Boiler (burning gas)	To provide the hot steam for the dryers

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
