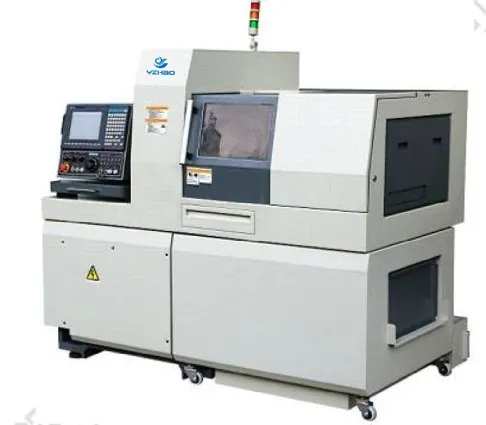

High Precision Equipment Automatic Heavy Metal Lathe Yzh-255en1s CNC Machine Tool

Product Description

Detailed Photos

Product Parameters

Parameter

Unit

SZ-255EN1S

CNC system

SYNTEC 22TB

Spindle rated speed

kw

11

Max. Machining diameter

mm

25

Z axis feeding movement

mm

240

Spindle bore

mm

27

Spindle rated speed

rpm

Max 10000 rpm/min

Spindle precision

mm

0.001

Spindle including guide bush travel

mm

240

Spindle not including guide bush travel

mm

350

Spindle Power

kw

2.2/3.7

Backside spindle power

kw

1.5/2.2

X/Z axis motor

kw

1

Lubrication pump motor

kw

0.004

Cooling system motor

kw

0.12

Spindle - external tool

6* ER12

Spindle -live tool

4*ER16

Backside spindle tool

4*ER16

Spindle bore drilling

mm

Φ 10.0

Spindle tapping capacity

mm

M8* 1.25

Live tool bore drilling

mm

Φ8

Live tool tapping capacity

mm

M6* 1.0

Backside spindle bore drilling

mm

Φ 10.0

Backside spindle tapping capacity

mm

M8* 1.25

Receiving box length

mm

90

X/Z Axis rapid traverse

m/min

30

Spindle height

mm

1050

Oil Lubrication Capacity

L

180

Machine Overall Dimension(LxWxH)

mm

2178*1278*1780

Total Machine Weight

KG

2300

Warranty

Month

12

STANDARD CONFIGURATION

No.

Item

Brand/Model

From

Qty

1

Machine body

HT300 casted iron

China

1

2

CNC system

SYNTEC 22TB

Taiwan

1

3

Spindle

Built-in, direct drive, oil cooler, max 10000 rpm, electric spindle 11KW

China

1

4

Sub-spindle

Built-in, direct drive, oil cooler, max 10000 rpm, electric spindle 11KW

China

1

5

Spindle bearings

NSK P4

Japan

1

6

X/Z axis motor

Serve motor, 1kw

Taiwan

1

7

X/Z Screw

PMI 3210/4210 C3 grade ball screw

Taiwan

1

8

Screw bearing

NSK P4

Japan

1

9

Live tool motor

Serve motor, 1kw

Taiwan

1

10

Guide way

PMI45 P grade roller guide way

Taiwan

4

11

Hydraulic System

Seven Ocean 40L capacity, 1.5kw

Taiwan

1

12

Lubrication System

HERG

Japan

1

13

Pneumatic system

SMC

Japan

1

14

Cooling system

A-RYUNG

Korea

1

15

Water tank

120L water tank

China

1

16

Low pressure electrics

Schneider

France

1

17

Lights

Working light and warning light

China

2

18

Inner fence

Stainless steel full closed inner fence

China

1

19

Machine cover

Full closed machine cover

China

1

20

Tool box

Machine tools kit in box

China

1

Company Profile
NINGBO YZHAO INTELLIGENT MACHINE Co., Ltd. is a national high-tech enterprise, dedicating to the Research & development and manufacturing of precise CNc lathe, machine center, digital & automatic production line, With the headquarter in Fenghua, Ningbo, China. Company has its own production base of 20000 square meters, has the capability of making 6000PCS/sets machines per year.Since the foundation in 2008, driven by ongoing scientific & technical innovation, now already have a strong technique team, with European specialist three people, high-medium technician more than thirty. For better serving the esteem customers, YZHAO fully take the advantages of advanced concept and technology from EU like Italy and GER., connecting with the domestic actual manufacturing situation, for years focus on the innovation, R&D and production on the CNc turning process & smart manufacturer, forming a dozen of high performance CNC lathe machines, like P series CNC lathe with flat bed in gang tools, X series CNC lathe with slant bed in gang tools, M series turret machines, S series turning & milling centers with double spindles, and forming a dozen of high performance machine centers, T series tapping centers, V series vertical machine centers, H series horizontal machine centers, VF series 5 axis machine centers, and especially for the customized automation having the obvious features of stability & compatibility, B series automation for shaft parts, H series gantry loader automation, G series six arm robots automation, among which, the in house built-in synchronous electric spindle (from Italy technology) plays a prominent part in the precise positioning of turning & milling center application, which with a number of independent invention patents, always in the leading position of CNCturning & smart manufacturing field, going through years of rich experiences in practical application, bring to the customers more and more feasible custom-made technique solutions and turnkey projects, gaining a very good reputation in the domestic and overseas market. With strong R&D team and strength, based on mutual benefit & win-win and customized service principle, bold investment in innovation, ongoing accumulation of experiences , YZHAO is committed to bring the biggest economic benefits to more and more enterprises.

FAQ

1. What is the payment Terms ?
A : T/T or L/C ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. what is your company mainly produces ?
A : Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories, wier cutting machine,cnc machine center
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the packaging of the machine?
A: The standard packaging of the machine is wooden pallet with plastic film.

---
