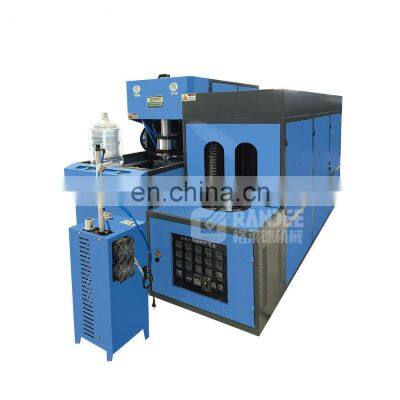

20liter water bottle blowing machine / blower
Product Description
Application:
Suitable for producing PET plastic containers and bottles from 15-25L. It is widely used to produce the carbonated drink bottle, drinking water bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
Features:
1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast , adopting infrared oven to heat the perform ,the perform rotated and heated equally.
2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4. The machine can be operated in the step-by-step mode and the semi-auto mode.
5. The machine is small with low investment, safety lock system for the blow molding system, ensure safety operating.
6. Volume exchange will be through the PLC control panel by setting the film sending time and filling time only.
7. One person can operate semi-auto perform loading and product bottle discharging and combining the fully auto blower process.
8. Space saving and low cost for equipment investment.
9. Sound distinguish and lubrication device is equipped on the machine for easy maintenance.
Machine show
Heater
One cavity mould
Our engineer will make 2D drawing for free
Main technical parameter:
| Type | Item | Unit | GD-B20L 5 gallon semi automatic blow molding machine |
| Container | Product material | / | PET |
| Volume | L | 5L-25L |
| Theoretic output | BPH | 90-180BPH for 5 gallon bottle |
| Preform length | mm | 15-460 |
| Preform inner diameter | mm | 5-200 |
| Max mould plate dimension | mm | 420(L)*500(W) |
| Max mould thickness | mm | 40 |
| Molding | Clamping force | KN | 330 |
| Mould opening stroke | mm | 38 |
| Machine size and weight | Main machine weight | T | 1 |
| Main machine dimension | cm | 218*77*196 |
| Heater dimension | cm | 237*68*165 |
| Heater weight | T | 380 |
| Power | kw | 15 |
Component list:
No
| Name
| Model
| Brand
| Country of origin
|
1
| High pressure valve
| 321H-35-2995
| Paker
| America
|
2
| Low pressure valve
| 7321BAN00-DC24V
| Paker
| America
|
3
| Check valve
| 9C800S
| Paker
| America
|
4
| Action solenoid valve
|
| AirTAC
| Taiwan
|
5
| Host power
| NES-200-24V
| MEANWELL
| Taiwan
|
6
| PLC
| FX1N-60MR
| Mitsubish
| Japan
|
7
| Touch screen
| TK6070IH
| WEINVIEW
| Taiwan
|
8
| Standard cylinder
| SC100X135-S
| AirTAC
| Taiwan
|
9
| Thin cylinder
| SDAS25X43-B
| AirTAC
| Taiwan
|
10
| Pneumatic processing elements
| GR20008-F1
| AirTAC
| Taiwan
|
11
| Swing cylinders
| DSR-25-180-P
| FESTO
| Germany
|
12
| Quick exhaust valve
| SEU-3/8
| FESTO
| Germany
|
13
| Proximity sensor
|
| Autonics
| Korea
|
14
| Photoelectric switch
|
| OPTEX
| Japan
|
15
| Module
|
| SEMIKRON
| Germany
|
16
| Ruby lamp
| CR30-15DN
| HAICHUANG
| China
|
Related product
| Automatic 5 gallon / 20L PET bottle water filling line:
This series production line can be cleaned automatically, sterilization, filling, sealing, counting and products discharging. It has complete functions, novel desgin, high degree of automation, which is the new 5 gallon barrel production line of intergrating mechanism, electricity, pneumatic technology together.
|
RO System:
Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.
This RO system we can make to match up with your water
filling machine from capacity from 500L/Hr to 50000L/hr.
We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
| |
| Automatic shrink labeling machine for 5 gallon neck label:
Capacity: 50-100bottles/min can be chosen
Label material: PVC PET OPS, etc
Bottle material: PET PE PP Glass
Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm
Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max)
Label thickness: 0.03~0.13mm
|
