Thermal Insulation Material PTFE Coated Fiberglass Cloth

US$7.50
1-299 Square Meters
US$7.30
300-999 Square Meters
US$7.00
1,000+ Square Meters

Basic Info.

Type
Adhesive Tape
Feature
High Temperature Resistance
Color
Browm/Black
Material
PTFE
Product Name
PTFE Coated Fiberglass Cloth
Base Material
Fiberglass Fabric
Temperature
-190ºC/+260ºC
Thickness
0.08-0.90mm
Max Width
1.25m
Weight
160-1650g/Sm
Coating
PTFE Coating
Good Features
Heat Resistant
Service
Supply Free Sample
Transport Package
by Package or Pallet
Specification
1m or 1.25m or customized
Trademark
Jiahe
Origin
China
HS Code
7019590000
Production Capacity
1000000 Squre Meter/Year

Product Description

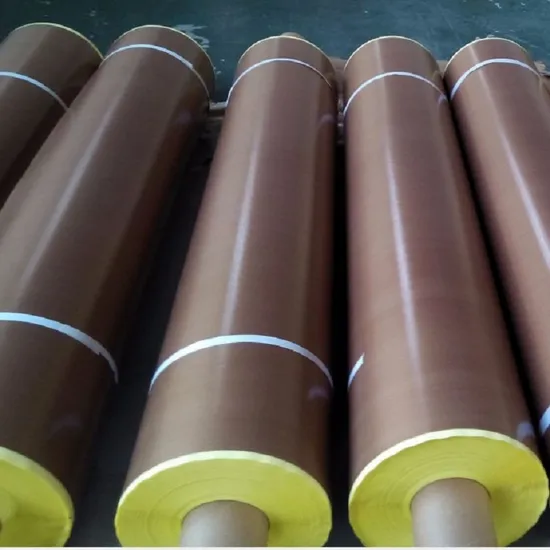

Thermal Insulation Material PTFE Coated Fiberglass Cloth
Product Description: Made from fiberglass yarn, weave it into different thickness and width of fiberglass fabric, impregnated with fine PTFE resin dispersion and dry it under 380ºC high temperature .
Performance:
high temperature resistance, its 24 hours temperature resistance is 260ºC,maximum up to more than 300ºC;non-stick surface, easy to clean; chemical resistance, anti corrosion,flame retardant.
Product Properties:
1.Non-stick
2.temperature resistance
3.low enlongation
4.anti-static
5.chemical resistance

PTFE COATED GLASSFIBER FABRIC
Product Color Thickness Weight Tensile strength (warp/weft) Max Width Temperature
9008AJ Brown 0.08mm 160g/sq 550/450N/5cm 1250mm -140/+260°C
9008BJ Black 0.08mm 165g/sq 550/450N/5cm 1250mm -140/+260°C
9013AJ Brown 0.13mm 260g/sq 1100/1000N/5cm 1250mm -140/+260°C
9013BJ Black 0.13mm 265g/sq 1100/1000N/5cm 1250mm -140/+260°C
9015AJ Black 0.15mm 380g/sq 1200/1100N/5cm 1250mm -140/+260°C
9018AJ Brown 0.18mm 380g/sq 1800/1700N/5cm 1250mm -140/+260°C
9025BJ Black 0.25mm 540g/sq 2100/1800N/5cm 2800mm -140/+260°C
9030BJ Brown 0.30mm 610g/sq 2800/2400N/5cm 2800mm -140/+260°C
9040BJ Black 0.40mm 820g/sq 3000/2500N/5cm 3500mm -140/+260°C
9065AJ Brown 0.65mm 1150g/sq 4400/4000N/5cm 4000mm -140/+260°C
9090AJ Brown 0.90mm 1550g/sq 6000/5000N/5cm 4000mm -140/+260°C
9090BJ Black 0.90mm 1650g/sq 6000/5000N/5cm 4000mm -140/+260°C
