| US$869.00 | 1 Piece (MOQ) |
| Model | SWJ-6/SWJ-12 | SWJ-6B/SWJ-10 | SWJ-6A/SWJ-12A |
| Max.tapping capacity(Cast iron/Steel) | M6/M5,M12/M8 | M8/M6,M12/M10 | M6/M5,M12/M8 |
| Distance spindle axis to column surface | 127mm | 140mm | 127mm |
| Max.distance spindle nose to worktable | 261/250mm | 300/265mm | 231/220mm |
| Spindle/Worktable travel | 40/45mm | 50mm | 40/45mm |
| Spindle taper | B12/B16 | B12/B16 | B12/B16 |
| Spindle speeds range | forward:480.850rpm/260-750rpm | forward:350-1310rpm/250-800rpm | forward:480.850rpm/260-750rpm |
| reverse:580,1050rpm/320-930rpm | reverse:480-1790rpm/340-1100rpm | reverse:580.1050rpm/320-930rpm | |
| Dimension of worktable surface | 196x196mm/230x230mm | 200x200mm | 230mm/245mm |
| Overall height | 815/825mm | 767mm | 815/825mm |
| Motor | 370W | 370/550W | 370W |
| G.W./N.W. | 63/43kg,72/48kg | 73/60kg | 63/43kg,72/48kg |
| Ship measurement | 61x44x93cm | 60x40x72cm | 61x44x93cm |

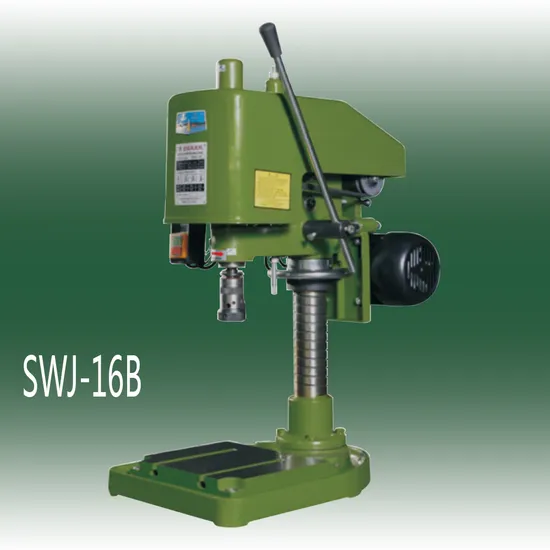

| Model | SWJ-16B | SWJ-16/SWJ-16A(K) | SWJ-20 |
| Max.tapping capacity(Castings/steel parts) | M16/M12 | M16/M12 | M20/M16 |
| Diameter of column | 70mm | 73mm | 73mm |
| Spindle speeds range | forward:240,380,570r/min | forward:240-570rpm | forward:160,250,380rpm |
| reverse:275,440,650r/min | reverse:275-650rpm | reverse:170,280,420rpm | |
| Max.distance spindle nose to worktable | 492/450mm | 400mm | |
| Max.distance spindle nose to base | 500mm | 676mm | 676mm |
| Distance spindle axis to column surface | 184.5mm | 183mm | 183mm |
| Spindle taper | B18 | B18 | B18 |
| Spindle travel | 50mm | 50mm | 50mm |
| Head stock vertical travel | 395mm | 300mm | |
| Dimension of worktable surface | 270x280mm/320mm | 300x310mm | |
| Dimension of base worktable surface | 250x300mm | 254x237mm | 270x280mm |
| Overall height | 1030mm | 1230mm | 1235mm |
| Motor | 750W | 750W | 1100W,910rpm |
| G.W./N.W. | 118/90kg | 120/102kg | 199/161kg |
| Ship measurement | 83x49x87cm | 79x46x134cm | 85x60x128cm |
