Gas Heated High Speed Textile Knitted Stenter Machine

Product Description

STENTER MACHINE
SPECIFICATION

Application	Knitted, woven, warp knitted
Machine width	2600mm
Working width	2400mm
Speed	5-100m/min
Chain	Horizontal chain
Rail	Lubricant free rail
Heating system	Natural gas, Thermal Oil, Steam
Chamber	6 chamber/ 8 chamber/ 10 chamber
Nozzles	Specially nozzles for different kinds of fabric
Cooling	Air cooling+ cylinder cooling
Fabric exit	Plaiter+ Batching

FEATURES:
- Fabric inlet combination is combined by fabric infeed frame, centering device, padder, speed synchronous controller etc
- Horizontal type padder, its combined by two solid roller, one is columnolid roller, the other is the drum-type solid roller.
- All the operating parameters of the machine are displayed in the same interface
- Virtual button with icon is easy for operating

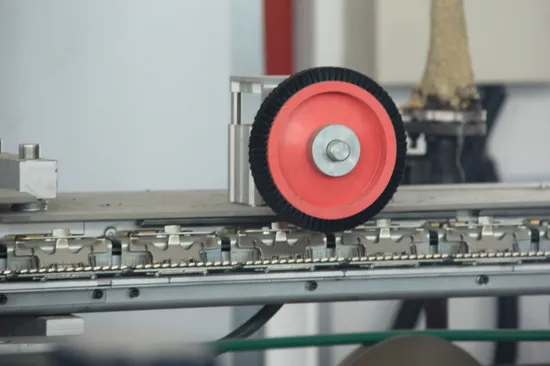

- Exactly control the process of putting on needles
- Gumming unit are adjustable to meet the different processing needs
- Module design is suitable for different requirements
- Easy assembling
- Space saving construction
- Minium lubricant consumption by the direct lubrication system
- The insulation panel of the whole machine is made of 150mm thickness high density heat insulating material, it keeps the heat loss at the lowest state
- All drive device are located outside the heated chamber and are accessible from the outside
Flow Chart:
Entry → Padder → Operation platform → Rail+ pinning → Heat setting chamber → Air cooling → Selvedge cutting → Plaiter+ Batching

---
