Made in China High Precision Xq5032 Universal Vertical Turret Milling Machine

US$6,500.00
1-4 Pieces
US$4,800.00
5+ Pieces

Basic Info.

Model NO.
XQ5032
Type
Worktable Milling Machine
Object
Metal
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
Xq5032 Milling Machine
Table Size
1500X320mm
Table Travel
800/300/320mm
T Slot(Number-Width-Pitch)
3-16-70mm
Spindle Taper
ISO50 7:24
Spindle Speed Range
40-1300(12steps)Rpm
Distance Between Spindle Nose and Table
50-450mm
Distance Between Spindle Axis to Column
320mm
Main Motor Power
4kw
Weight
2200kg
Overall Dimension
2200X1820X2100mm
Transport Package
Fumigation-Free Wooden Box Packaging
Specification
2200x1820x2100mm
Trademark
Kasen
Origin
China
HS Code
8459590000
Production Capacity
1000

Packaging & Delivery

Package Size
220.00cm * 182.00cm * 210.00cm
Package Gross Weight
2200.000kg

Product Description

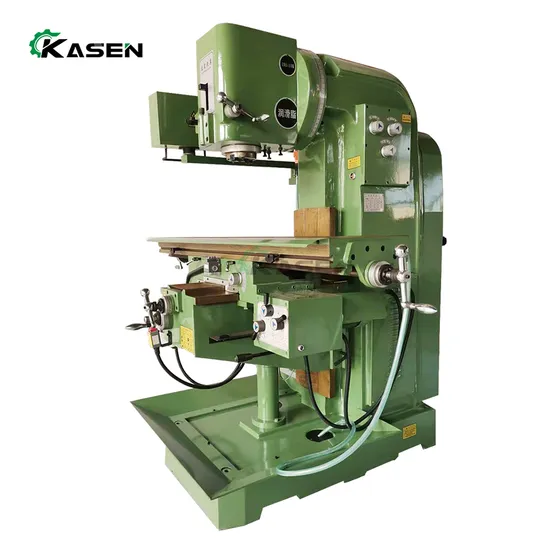

Made in China High Precision XQ5032 Universal Vertical Turret Milling Machine
Product Description
Product Model:
XQ5032 Vertical milling machine
Main technical specifications:
Specifications Units XQ5032
Table size mm 1500x320
Table travel mm 800/300/320
T slot(number-width-pitch) mm 3-16-70
Spindle taper ISO50 7:24
Spindle speed range rpm 40-1300(12steps)
Distance between spindle nose and table surface mm 50-450
Distance between spindle axis to column surface mm 320
Main motor power kw 4
Weight kg 2200
Overall dimension mm 2200x1820x2100



After Sales Service
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost


FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
