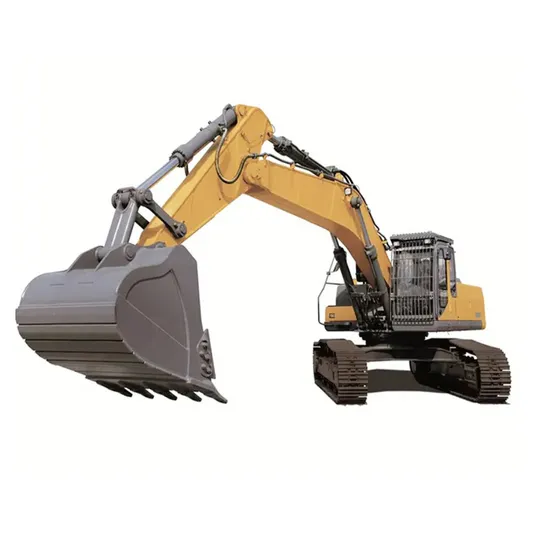

China Xuzhou Manufacture Crawler Excavator Xe700d 70t Crawler Excavator

Product Description

Product Description
1. It carries an original engine imported from America that meets TIER 3 emission standard. It is featured in strong power, low noise, low oil consumption and low emission and can satisfy the requirements of diversified operation modes. The engine is integrated with a high pressure fuel injection system, by controlling fuel supply actuator and timing actuator, ECM can achieve pure electric control of the full fuel injection process, precisely control injection amount and time of injection, reduce fuel consumption and increase engine efficiency.
2. Imported original hydraulic components and technologically advanced negative flow control system have not only extended service life of the entire vehicle but also improved its working efficiency; the new type main valve has a series of regenerative, convergent and prioritized functions that reduce energy consumption requirements; hydraulic oil cooling system has an independent cooling system, which can automatically control fan rotating speed according to oil temperature, reduce energy consumption and lower noises; what's more, the fan can reversely rotate, and is convenient for the dust to be wiped off from the cooler.
3. It has a three-level fuel filtration system (one level of coarse filtration and two levels of fine filtration) that can effectively screen impurities out of fuel and guarantee long term, high load and continuous reliable engine operation under harsh working conditions. It has adopted a visible oil-water separator of the latest technology, with which, when to replace filter element can be determined from fuel level. During the full service life of filter element, oil intake resistance remains unchanged, which lowers the cost of filter element and reduces maintenance cost for customers.
4. The combination of oil bath type air filter + radial sealing type air filter system not only reduces maintenance cost, but also increases filtration rate to 99.99%, adaptable to dusty and damp working conditions.
5. The electric control system, which has a good performance and a reliable quality, realizes the perfect matching of power and hydraulic system, makes the best of engine power and guarantees quick and high efficient working operation.

Product Parameters

SPECIFICATION OF XE700D 70T CRAWLER CRANE
Item	Unit	Parameter Value
Model	-	XE700D
Operation Performance Parameter
Operating weight	kg	69000
Bucket capacity	m³	2.4-4.6
Bucket digging force	kN	300
Arm digging force	kN	363
Max. digging height	mm	7370
Engine Parameter
Model	-	-
Rated power/speed	kw/rpm	336/1800
Displacement	L	-
Dimension Parameter
Crane Full Dimension(L×W×H)	mm	11388*3390*3570
Width of Crawler	mm	3030
Speed Parameter
Travel speed(H/L)	km/h	4.2/3.0
Swing speed	r/min	7
Gradeability	°	35
Max. digging radius	mm	11580

Detailed Photos

Company Profile
HOKA VEHICLE is located in Shanghai, which is a financial, trade and shipping center in China. All these give our company an obvious superiority in trade, transportation and material flow.
With the professional team, first class design, production experience and market capacity, HOKA VEHICLE has exported and delivered more than 5, 000 units Construction Machinery to countries across Africa Middle East, Southeast Asia and South America.Our main products cover more than 11 series, ranging from Hoisting Machinery, Building Machinery, Earthmoving Machinery, Concrete Machinery,Road Machinery,Logistics Machinery, Trucks, Drilling Machinery, Mining Machinery and all other kinds of Construction Machinery.
