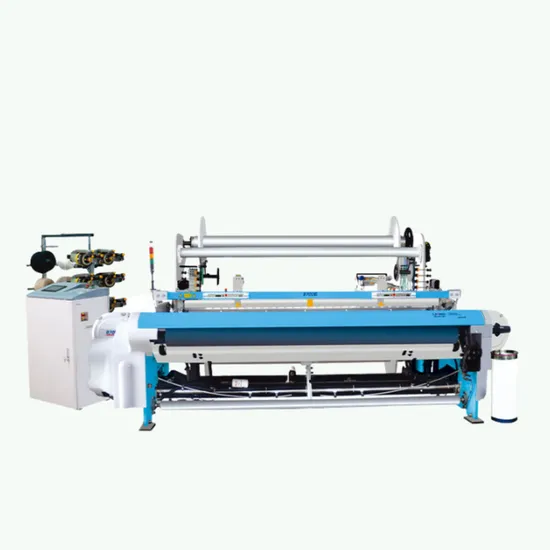

| LND 9700 High speed Flannelette loom |
| Width | 190,210,230,260,280,300(cm) |
| Speed | 300-380 RPM (designed by material and width) |
| Raising height | 0-10mm |
| Yarn woven | short fiber Nm4-Nm200, long fiber tex1.7-tex380 |
| Weaving adaptability | all kinds of terry flannelette productions |
| Down warp let-off | weaving beam diameter φ800mm |
| Hair warp let-off | weaving beam diamelercφ800mm |
| Let-off method | electronic let-off |
| Take-up method | electronic take-up |
| Drive device | Starting and braking are electromagnetic clutch type, the main motor power is 6kw |
| Open device | adopt electronic dobby and jacquard loom, 24healds electronic dobby at most |
| Hair warp let-off | adopt electronic let-off, independent electronic control system, easy to adjust and control the Hair warp |
| Raising | special electronic raising device and patents designing |
| Weft Variability | self control by electronic let-off and electronic take-up, satisfied all kinds of terry flannelette productions |
| Control and examine | adopt microcomputer control system, electronic let-off, electronic weft selecting, automatic wefting, self-check, LCD ect.
|
