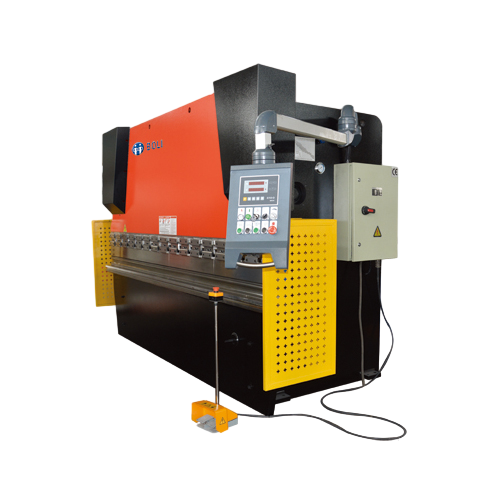

Hydraulic Metal Plate Bender Automatic / Auto CNC Bending Sheet / Steel Press Brake Machine

Product Description

HPB series Press Brake Machine
Schematic Diagram:
Features:
> Steel-welded frame, vibration to eliminate stress, with high strength and good rigidity. Hydraulic top-drive, steadiness and reliability.
> Hydraulic top-drive, steadiness and reliability. mechanical stop steel torsion bar to maintain synchronization, high precision.
> Motorized-adjusting device of backgauge and rams stroke, fine adjusting by handwheel, numerical display.
> Deflection compensation unit installed on the top die. Manual crowned bottom die holder is adopted for the machine above 250ton length 4000mm. Travel limit protection, full machine guarding with safety interlocker.
Specification:

Model	Nominal Force	Bolster Length	Between Columns	Throat Depth	Slide Stroke	Max. Shut Height	Main Motor Power
	KN	mm	mm	mm	mm	mm	KW
HPB-63/2500	630	2500	2000	250	100	370	5.5
HPB-63/3200	630	3200	2500	250	100	370	5.5
HPB-80/3200	800	3200	2500	250	120	380	5.5
HPB-100/3200	1000	3200	2500	320	120	400	7.5
HPB-100/4000	1000	4000	3000	320	120	400	7.5
HPB-125/3200	1250	3200	2500	320	120	400	7.5
HPB-125/4000	1250	4000	3000	320	120	400	7.5
HPB-160/3200	1600	3200	2500	320	180	450	11
HPB-160/4000	1600	4000	3000	320	180	450	11
HPB-160/6000	1600	6000	4100	320	180	450	11
HPB-200/3200	2000	3200	2450	320	200	470	15
HPB-200/4000	2000	4000	3000	320	200	470	15
HPB-200/6000	2000	6000	4500	320	200	470	15
HPB-250/3200	2500	3200	2450	400	250	540	15
HPB-250/4000	2500	4000	3000	400	250	540	15
HPB-250/6000	2500	6000	4600	400	250	540	18.5
HPB-300/4000	3000	4000	3000	400	250	560	18.5
HPB-400/4000	4000	4000	3100	400	250	560	22
HPB-400/6000	4000	6000	4500	400	250	560	30
HPB-500/4000	5000	4000	3100	500	250	600	30
HPB-500/6000	5000	6000	4500	500	250	600	30
HPB-600/8000	6000	8000	6000	500	300	650	45
HPB-800/6000	8000	6000	4500	500	300	650	55
HPB-1000/6000	10000	6000	4500	500	300	650	75

FAQ Q: What is a bending machine?A: A bending machine is a tool used to bend various materials, such as metal sheets, pipes, tubes, and bars, into desired shapes and angles.Q: What industries use bending machines?A: Bending machines are used in industries such as automotive, construction, aerospace, and metal fabrication.Q: What are the different types of bending machines?A: The different types of bending machines include hydraulic, electric, and CNC (Computer Numerical Control) variants.Q: How do hydraulic bending machines work?A: Hydraulic bending machines use hydraulic power to apply force and bend the materials.Q: What are the advantages of CNC bending machines?A: CNC bending machines offer highly accurate and complex bending operations through computer programming and automation.Q: Can bending machines handle different material thicknesses and sizes?A: Yes, bending machines are designed to handle materials of various thicknesses and sizes, offering versatility in manufacturing processes.Q: How do bending machines increase productivity?A: Bending machines reduce manual labor, speed up production cycles, and offer consistent and precise results, thereby increasing productivity.Q: What are the key features of bending machines?A: Bending machines often feature programmable controls, allowing users to set specific bending angles and dimensions for accurate and efficient bending operations.

---
