Radar Motion & Infrared Presence Sensor

Product Description

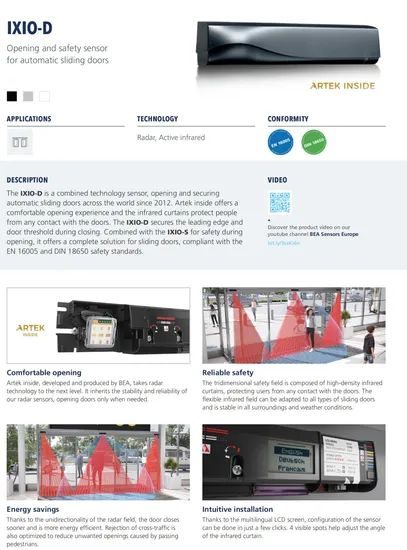

Art. No. IXIO-D RADAR & INFRARED PRESENCE SENSOR
The IXIO-D is a combined technology sensor, opening and securing automatic sliding doors across the world since 2012. Artek inside offers a comfortable opening experience and the infrared curtains protect people from any contact with the doors. The IXIO-D secures the leading edge and door threshold during closing. Combined with the IXIO-S for safety during opening, it offers a complete solution for sliding doors, compliant with the EN 16005 and DIN 18650 safety standards.
The IXIO-S INDUS is an active infrared presence sensor. It functions on
the basis of a constant analysis of background reflection. For industrial
doors up to 4m high, it monitors the area in front of the door to prevent it from hitting people or vehicles. Together with the safety provisions stipulated by standard EN 12453,it offers an additional three-dimensional protection.
Features:
PERFORMANCE
1. Presence detection via 2 infrared curtains, each consisting of 24 light spots.
2.Higher convenience and safety for pedestrians and vehicles near the door.
3. Reliable protection thanks to the double presence curtain.
4. Ideal solution for industrial doors up to 4m high.
APPLICATIONS Presence detection for industrial doors. DESIGNED FOR INDUSTRIAL ENVIRONMENTS
1.Reliable detection in difficult environments
EASY INSTALLATION
1. Intuitive setup with the aid of the LCD screen and/or BEA remote control
2. Graphic LCD screen with language selection.
3.4 visible red spots on the ground for simplified positioning of the safety curtain.
4. Comes with a 10m cable.
5. Max. installation height 4m.
VERSIONS
• IXIO-SO I : presence detection
• IXIO-ST I : presence detection (external monitoring available)

Technical data:
Model	IXIO-S INDUS
Technology Spot diameter Number of spots Number of curtains	Active infrared with background analysis 5 cm × 5 cm (typical) max. 24 by curtain 2
Detection mode	Presence
Detection field	3.5 m × 0.6 m (Width × depth)
Angle	From -7 ° to +4 ° (adjustable)
Output Max. contact current Max. contact voltage	Solid-state-relay (free of potential, free of polarity) 100 mA 42 V AC/DC
Hold time output signal	0.3 s to 1 s (not adjustable)
Typical response time	< 200 ms (max. 500 ms)
LED signals	Red
Mains frequency	50 to 60 Hz
Supply voltage	12V - 24V AC +/- 10 % 12V - 30V DC - 5%/+10% (to be operated from SELV compatible power supplies only)
Power consumption	<2.5 W
Mounting height	2 m to 4 m
Dimensions	262 mm (L) × 55 mm (H) × 44 mm (W)
Materials / Color	ABS + LURAN S / Black, white or aluminium finish
Temperature range	-25°C to +55°C; 0-95% relative humidity, non condensing
Noise	< 70 dB
Expected lifetime	20 years
Protection degree	IP54
Norm conformity	EMC 2004/108/EC; ROHS 2 2011/65/EU

---
