Product Details
Product Description
Product Description
Tip:
Due to market price fluctuations, the above product prices and attributes are for reference only
Please contact customer service for specific details,
Sincerely look forward to working with you! !
Contact number: +8617503799066
Email: lutongjason@gmail.com
WeChat: 17503799066
Facebook: Luoyang Lutong
Twitter:
TikTok: lutongjason
Official website:

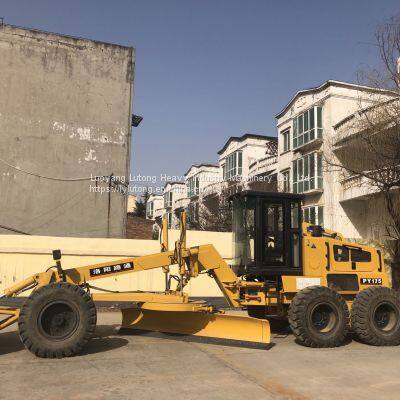

MAIN FEATURES01Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.
02Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
03Driving axle with integrated free-wheel anti-slip differential and b roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
04Popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
05Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically –operated pin drawing device is designed firstly in board.
06Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.
07Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
08Dual diagonal appearance with whole metal hood 1m×1m distance.
09Electro-hydraulically operated with entire instrumental monitoring system, Free-maintenance OPTIMA Sweden batteries have.
10It is optional for front bulldozing plate and rear ripper.
MAIN TECHNICAL PARAMETER
| Overall dimension | L×W×H | 7900×2050×3200mm |
|
| Min.ground clearance of front axle | 450mm |
|
| Min.ground clearance of rear axle | 410mm |
|
| Wheel tread | 1590mm |
|
| Wheelbase(front/tear) | 6120mm |
|
| Length of blade | 3350mm |
|
| Wheelbase of rear axles | 1410mm |
|
| Engine | Model | YN48GBZ |
|
| Type | Inline,water-cooled,four-stroke,direct injection |
|
| Rated power | 92kw |
|
| Engine displacement | 4.8L |
|
| Cylinder bore/stroke | 108mm/132mm |
|
| Min.fule-consume ratio | ≤225g/(kw-h) |
|
| Transmission system | Max.speed(forward/reverse) | 40km/h 30km/h |
|
| Gearbox type | Fixed shaft power stage |
|
| Torque converter | Single-stage single-phase three-element |
|
| Gears | Four forward four reverse |
|
| Overall parameters | Overall weight | 7450kg |
| Max.swing angle of front axle | ±16° |
| Max.steering angle of front wheel | ±45° |
| Blade size(length*height*thickness) | 3350×500×18mm |
| Blade plate diameter | 1250mm |
| Steering angle of articulated frame | ±23° |
| Steering angle of blade | 360° |
| Groud clearance of blade | 450mm |
| Cutting depth of blade | 260mm |
| Inclination angle of blade | Forward 47°/backward 5° |
| Sliding range of blade | Left500mm/right550mm |
| Hydraulic system | Type | Open-type system |
| System pressure | 16MPa |
| Fill capacity | Fuel | 105L |
| Hydraulic oil | 75L |
| Transmission system | Tire type | 16/70-24 |
|
|
|
|
>>
