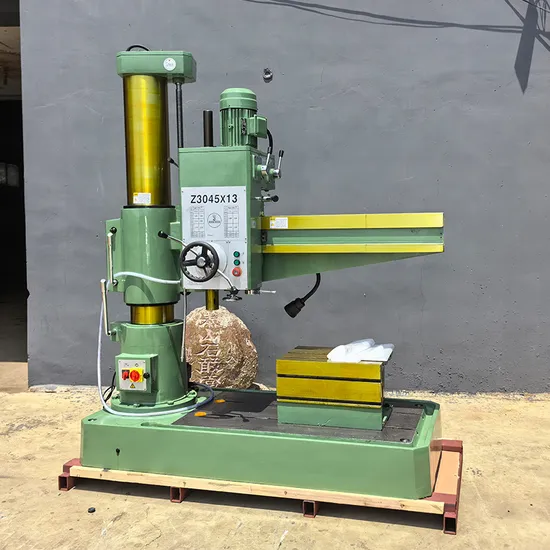

Powerful China Factory Z3045*13 Radial Drill Press Metal Wood Drilling Machine

Product Description

Product Description
Radial Drilling Machine
The radial drilling machine integrates the advantages of the drilling machine. It expands the drilling machine's processing range, including boring, tapping, threading, drilling, reaming, and developing holes. It is widely used in the mechanical processing of large, medium, and small enterprises and individual industries.
The radial drilling machine adopts mechanical transmission, mechanical clamping, and mechanical speed change, which is easy to operate. The guide rail is ultra-high frequency quenched. The rocker arm automatically rises and falls, and the production efficiency is high. The reliable structure and excellent manufacturing ensure the durability of the machine tool precision.
Product Parameters

Specification	Z3040*10(double column)	Z3040*13	Z3045*13	Z3050*16
Drilling diameter	Steel 35 / Casting 40 mm	Steel 35 / Casting 40 mm	Steel 40 / Casting 45 mm	Steel 48 / Casting 50 mm
Distance from spindle center to column	310-900 mm	320-1170 mm	320-1120 mm	360-1600 mm
Distance from spindle nose to table	170-1080 mm	300-1100 mm	235-1100 mm	350-1150 mm
Spindle travel	280 mm	200 mm	280 mm	220 mm
Spindle taper	MT. 4	MT. 4	MT. 4	MT. 5
Spindle speed step	12	12	12	6
Spindle speed range	34-1220 r/min	34-1220 r/min	22-1400 r/min	78 / 135 / 240 / 350 / 590 / 1100 r/min
Spindle lift speed	1.3 r/min	1.3 r/min	1.3 r/min	1.3 r/min
Rocker arm rotation angle	360±180°	360±180°	360±180°	360°
Spindle box travel	600 mm	850 mm	850 mm	1250 mm
Spindle feeding	0.10 / 0.16 / 0.25 mm/r	0.10 / 0.16 / 0.25 mm/r	0.10 / 0.16 / 0.25 mm/r	0.10 / 0.16 / 0.22 / 0.25 / 0.35 / 0.56 mm/r
The max. resistance of the spindle	6300 N	6300 N	6300 N	16000 N
Main motor power	1.5 / 2.2 kw	1.5 / 2.2 kw	3 kw	4 kw
Lift motor power	1.1 kw	1.1 kw	1.1 kw	1.5 kw
Weight	1150 kgs	1150 kgs	1600 kgs	2000 kgs
Size	1500*700*2200 mm	1850*800*2350 mm	1850*800*2350 mm	2170*950*2450 mm

Detailed Photos
Packaging & Shipping
The Radial Drilling machine will be packed with a metal base and plywood case, which is suitable for international transportation, such as by sea, air, etc.Delivery time:3-5 days, fast to deliver, usually have stock at hand!

Workshop

After Sales Service
1. The Operation Manual will be sent with the machine.
2. The spare parts will be provided freely during the warranty period.
3. The 24-hour online Service Team will help you solve the problems that you meet!
4. we also provide the after-service with video calls, videos, phone calls, online meetings, etc., to ensure
you can use the machine better.

FAQ
1:How can I choose the most suitable machines?A: Please tell me your specifications. We can choose the best model for you, or you can select the exact model. You can also send us the product drawing, and we will choose the most suitable machines for you.2: What about the quality of the machine? And after-sales service?A: Our machine warranty period is 1-2 years, and we provide free technical service.3: What are your trade terms?A: EXW, FCA, FOB, CFR, CIF, DDP etc. are all acceptable.4: What are the Payment Terms?A: T/T, 30% initial payment when ordering, 70% balance payment before shipment;5: What's the MOQ?A: 1 set

---
