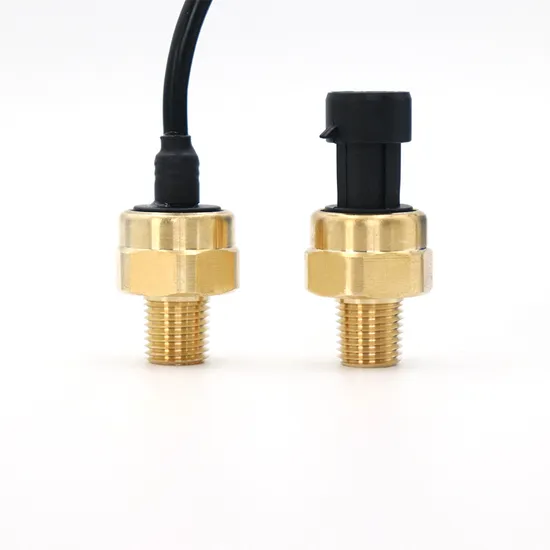

Low Cost 0.5-4.5V Output Brass Ceramic Capacitive Pressure Sensor For Liquid Gas

Product Description

Low Cost 0.5-4.5V Output Brass Ceramic Capacitive Pressure Sensor For Liquid Gas Product Description

Applicable media	Liquid, Gas
Pressure range	0-10bar; 0-1000kPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~70ºC
Ambient temperature	-40~110ºC
Working temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable outlet
Mechan ical connection	NPT
Housing material	Brass

Mechanical Dimension


Detailed Photos

Company Profile

FAQ Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What's your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.

---
