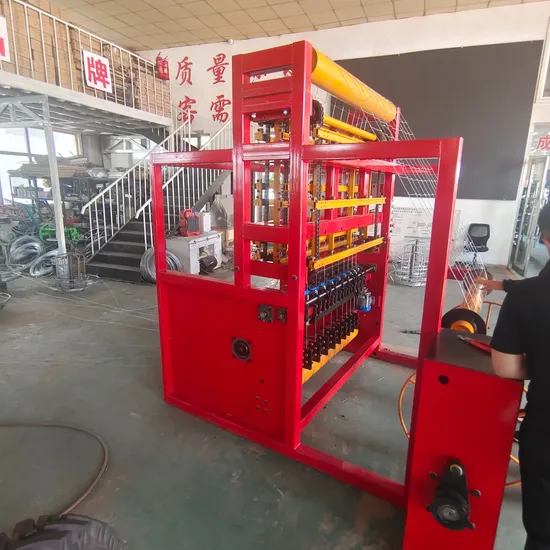

Grassland Field Wire Mesh Fence Machine Farm Fence

Product Description

Model	DV-1200	DV-1500	DV-1800	DV-2100
Inlet wire diameter	1.8-2.5mm	1.8-2.5mm	1.8-2.5mm	1.8-2.5mm
Edge wire diameter	2.0-3.5mm	2.0-3.5mm	2.0-3.5mm	2.0-3.5mm
Fence height	1200mm	1500 mm	1800 mm	2100 mm
Produce efficiency	45 row/min	45 row/min	45 row/min	45 row/min
Distance weft wires	50mm-500mm (Adjustable)	50mm-500mm (Adjustable)	50mm-500mm (Adjustable)	50mm-500mm (Adjustable)
Distance warp wires	50*9+100*2+150*3+200*2=1500 (mm)	50*9+100*3+150*3+200*3=1800 (mm)	50*11+100*3+150*3+200*4=2100 (mm)	50*13+100*5+150*3+200*4=2400 (mm)
Line wire number	13	16	19	20
Weight	2500KG	3300KG	4100KG	4900 KG
Dimensions	3.0x3.0x2.4(m)	3.2x3.0x2.4(m)	3.4x3.0x2.4(m)	3.9x3.0x2.4(m)

Roll mesh collection system.
Roll mesh collection system will automatically adjust the tightness according to the roll mesh diameter,It's more convenient to
take away the roll mesh. Wire mesh weaving system. All parts of the weaving system are made of special alloy materials with high hardness, which increases the service life of the parts. Cross wire feeding system.
The cross wire enters from the side of the machine, which can clearly separate the horizontal wire from the vertical wire, the machine runs more smoothly.
Wire cutting system. The structure of the shearing system is specially designed to complete the shearing process quickly and efficiently and increase the product output. Machine control system. The control system is composed of Chinese and English,the spacing of the cross wires can be adjusted on the touch screen. Cross wire feed pipe.
All cross wires enter the machine through a separate pipe, which can ensure that the iron wire will not be wound and reduce the failure rate.Cross wire straightening device.
Each cross wire is straightened twice horizontally and vertically to ensure the flatness of the wire mesh.
Motor.
The whole machine uses high-performance motors with different powers in different positions to minimize the power consumption in production and use.
Products Use:
To facilitate the use of grassland resources plan, improve the utilization rate of grassland and grazing effiency, prevent grassland degradation, protect the natural environment. At same time also applies agriculture, herd operators to establish family breeding field, farmland filed and forest nursery. hunting and tourism region mesocosm, isolated in a construction site maintenance.
