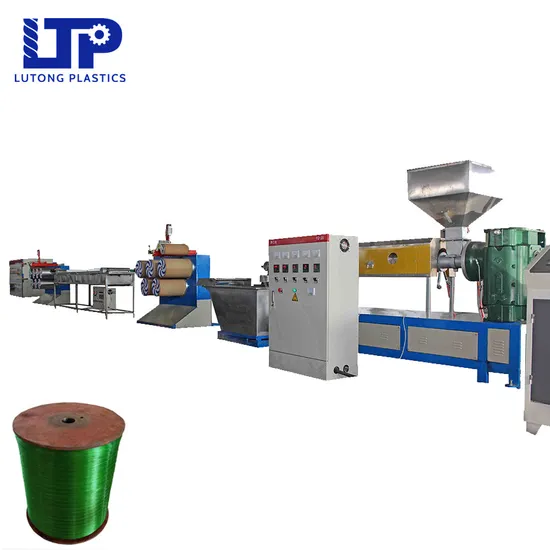

Plastic Monofilament Yarn Extruder Machine for Making Rope or Twine

US$35,000.00
1 Set
US$33,500.00
2 Sets
US$32,000.00
3+ Sets

Basic Info.

Model NO.
SYJ-80
Type
Round Wire Drawing Machine
Mode
Horizontal
Product Types
Rope
Raw Material
PP
Automation
Non-Automatic
Computerized
Non-Computerized
Screw Material
38#Crmoala
D/L
30:1
Output
60-80kgs/H
Yarn Type
Monofilament Yarn
Yarn Quantity
320PCS
Yarn Diameter
0.15-0.5mm
Transport Package
in Nude
Specification
20m in length
Trademark
LUTONG
Origin
China
HS Code
8477209000
Production Capacity
30 Sets /Year

Product Description

Plastic Monofilament Yarn Extruder Machine for Making Rope or Twine
Application and Characters:
Usage:
This set of machine is a professional yarn drawing line, which is mainly used for producing PP, PE yarn, and also can be used for processing other plastic yarns via corresponding adjustment.
Characters: 1. This line consists of extruder( including cold water container), first stretching device, heating device, the second stretching device, coiling machine, ect… The matching devices for production process are complete, so it can continuously finish the whole procedures from putting material to separate yarn into axes.
2. This line matched resin molecular bond guidance process, so the finished yarns have the advantages of high strength and stable quality.
3. According to different technological requirements, set and automatically control the heating temperature of screw cylinder and die.
4. These two stretching devices have the automatic full speed system and linear velocity display function, so the machine can choose reasonable speed according to different technological requirements.

Specification:
Model SJY-45 SJY-65 SJY-75 SJY-80 SJY-90
Screw material 30#CrMonALA 30#CrMonALA 30#CrMonALA 30#CrMonALA 30#CrMonALA
Screw dia. 45mm 65mm 75mm 80mm 90mm
L/D 30:1 30:1 30:1 30:1 30:1
Motor power 11kw 15kw 18kw 22kw 30kw
Spinneret hole
quantity
80-90 100-120 110-140 130-150 140-160
Output 20-25kg/h 20-25kg/h 30-50kg/h 70-90kg/h 90-100kg/h

machine details:
Components:
1. extruder with die head, electric box, cold water container
2. the first stretching device
3. hot water container
4. the second stretching device
6. winder ( three types available)
