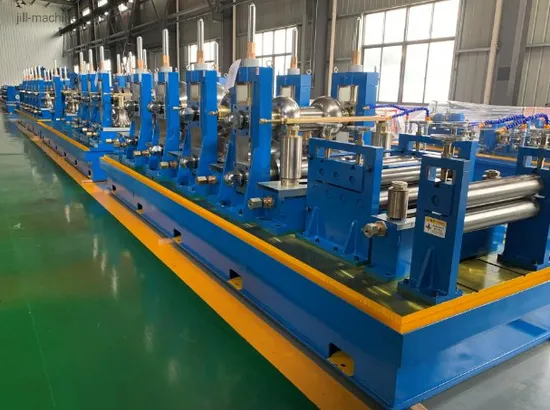

Roller Quick Change Carbon Aluminum Soft Coil Hard Coil Welded Pipe Line Hot Sales Made in China

Product Description

Roller Quick Change Carbon Aluminum Soft Coil Hard Coil Welded Pipe Line Hot Sales Made in China

Production process flow
Step 1: Un-coiler Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum, brake.
There are 3 types: pneumatic, hydraulic and manual.
Step 2: Shear & butt-welding
Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue production.
2 Types: Automatic & manual
Step 3: Vertical Accumulator
Function: storage strip to keep continue production for the machine to make metel tube.
Type: Vertical
Advantage: easy to operation, low investment. special for small size and light wall pipe
Disadvantage: less storage capacity, crease.
Step 4: Horizontal Accumulator Function: storage strip to keep continue production for the Round Square Pipe Making Machine Production Line.
Type: Horizontal
Advantage: Large capacity.
Disadvantage: more expensive than vertical type
Step 5: Forming sectionFunction: forming the tube from strip Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gear box
>Siemens Beide motor
Step 6: High Frequency Welding Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder
Step 7: Sizing section of pipe making machine
Function: sizing the tube to precise size
Advantage:
>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor
>High precision, low error of the pipe size

Step 8: Flying sawFunction:cutting the tube mill line tube to right length. Advantage: easy to operation, low investment.
Disadvantage: loud, cutting section generates burr.

Step 9: Cold saw cutting of erw tube mill line Function:cutting the tube to right length.
Advantage: No noise, no burr cutting precision and cross section .
Disadvantage: the price is 4 times of ordinary flying saw.
Step 10: Run Out Table. Function: run out the pipe, packing the pipe for tube making machine
Type: Automatic or manual
Machine production range
Below is our standard series of our steel pipe making machine. Also we can provide you customized according to your specific request .

Model	Diameter of welded pipe(mm)	Wall thickness of welded pipe(mm)	Speed of machine(m/min)	Power of main motor(k/w)	High-frequency power(kw)
HG16	8-25	0.25-1.0	30-100	30	60
HG25	8-32	0.35-1.3	30-100	45	100
HG32	13-50.8	0.5-2.0	30-90	110	150
HG50	20-63.5	0.6-2.5	30-90	160	200
HG60	25-63.5	0.8-3.0	20-80	185	250
HG76	25-80	1.2-4.0	20-70	200	300
HG90	32-90	1.5-4.5	20-60	110*2	400
HG115	38-115	2.0-5.0	20-60	160*2	400
HG165	80-165	2.0-6.0	15-50	200*2	500
HG219	90-219	3.0-8.0	15-50	250*2	600
HG273	165-355	4.0-10.0	15-40	250*1 /185*2	800
HG300	165-355	4.0-12.0	15-30	250*2/200*2	1200

Our Advantages
ST company have successfully supplied world-class products and service to over 30 countries and areas around the world, such as: Poland, Spain, Russia, Yugoslavia, Ukraine, Turkey, Egypt, Saudi Arabia, India, Vietnam, Malaysia, Thailand, the Philippines, Pakistan, kazakhstan, Ethiopia, etc. in the past years.
Our parterners
Certifications

Exhibition display

Packaging & Shipping

FAQ
1. Are you manufacturer or trading company?
We are manufacturer with 30 years experience , Which is located in the base place of this industry Yangzhou city Jiangsu Province ,China .
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
4. How long is the warranty period of your machine?
1 year .

---
