Pulverizing all kinds of plastics Crush Capacity 150-200kg/H Strong Crusher

US$1,900.00-2,300.00 1 Set (MOQ)

Basic Info.

Model NO.

SG-300F

Type

Hard Plastic Crusher

Raw Material

PP,PE,ABS,PVC etc.

Structure

Top Feed

Knife Classification

Claw Knife Crusher

Knife Roll

Solid Knife Roller

Computerized

Non-Computerized

Certification

CE, ISO9001:2008

Chamber Calibre

200x300mm

Crush Capacity

150-200kg/H

Rotating Blade

3x3pcs

Fixed Blade

2x1

Motor

5.5kw

Weight

400kg

Transport Package

Standard Export Packaging

Specification

950x740x1190mm

Trademark

MFGSP

Origin

China

HS Code

8479820090

Production Capacity

5000sets/Year

Packaging & Delivery

Package Size

96.00cm * 84.00cm * 129.00cm

Package Gross Weight

410.000kg

Product Description

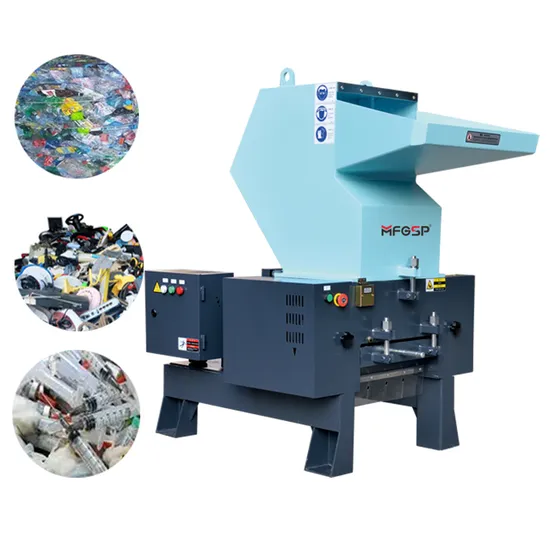

Strong Crusher
Performance characteristic:
The device is applicable to centralized pulverizing of all kinds of plastics,including the waste of injection moulding,blow molding and extrusion forming.
The structure of Crusher is compact for convenient operation,easy cleaning and maintenance which enhances the working efficiency.

Specifications:
Model	Chamber Calibre (mm)	Crush Capacity (kg/H)	Rotating Blade (Pcs)	Fixed Blade (Pcs)	Motor (Kw)	External Dimension LxWxH (mm)	Weight (kg)
SG-230F	200x230	100-150	3x2	2x1	4	920x610x1050	250
SG-300F	200x300	150-200	3x3	2x1	5.5	950x740x1190	400
SG-400F	235x400	200-250	3x4	2x1	7.5	980x840x1300	500
SG-500F	290x500	300-350	3x5	2x2	11	1100x1020x1530	950
SG-600F	320x600	350-450	3x6	2x2	15	1200x1110x1690	1300
SG-800F	540x810	450-600	3x4	2x2	22	2200x1500x2300	2100
SG-1000F	660x1000	600-1000	3x5	2x3	30	2300x1750x2650	2500
SG-1200F	800x1200	800-1200	3x6	2x3	45	2700x2100x3100	3500
Note:The crushing capacity depends on the diameter of screen mesh.
