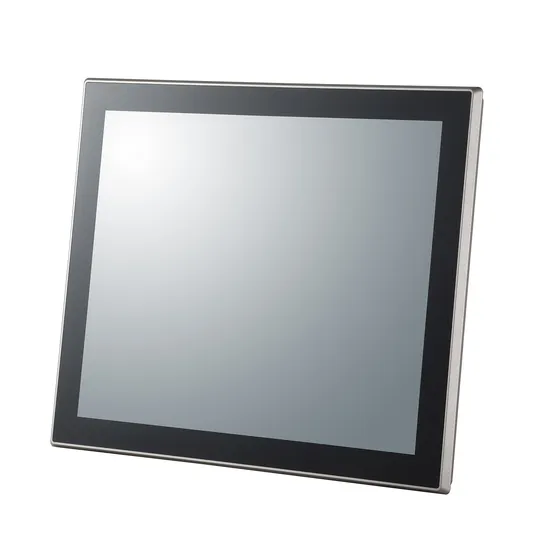

Premium 17-Inch Industrial Touch Panel PC with Multi-Touch

Product Description

Aluminium 17 inch Embedded 10 Point Multi Touch Industrial PCAP All in one touch panel pc
Main Products
Feedback
Product Description Features:
1. Cordless motherboard design, high-end industrial panel PC.
2. Intel Celeron J4125/J6412 or Intel Core 8th/10/11th Gen of i5/i7, J4125/J6412: DDR4 SODIMM x1; Core 5/i7: DDR4 SODIMM x2.
3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
4. With Rubber waterproof ring on the back side.
5. Industrial LCD panel, wide viewing angle, high nits, true color.
6. LCD+HDMI dual display, synchronous/asynchronous mode
7. Full flat touch screen, low power consumption, fanless.
8. 9V-36V Wide Voltage.
9. High performance motherboard, 7x24 continuous operation.

PC
CPU	Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless
CPU Optional	Intel® Celeron J6412, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.6 GHz, 1.5MB Cache, Fanless
CPU Optional	Intel® Core i5-8260U 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 3.9 GHz, 6MB Cache, Fanless
CPU Optional	Intel® Core i5-8365U 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 4.1 GHz, 6MB Cache, Fanless
CPU Optional	Intel® Core i7-8565U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.6 GHz, 8MB Cache, Fanless
CPU Optional	Intel® Core i7-8569U 4 Cores, 8 Threads, Base 2.8 GHz, Turbo 4.7 GHz, 8MB Cache, Fanless
CPU Optional	Intel® Core i5-10210U 4 Cores, 8 Threads, Base 1.3 GHz, Turbo 4.2 GHz, 8MB Cache, Fanless
CPU Optional	Intel® Core i5-10310U 4 Cores, 8 Threads, Base 1.7 GHz, Turbo 4.4 GHz, 8MB Cache, Fanless
CPU Optional	Intel® Core i7-10510U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless
CPU Optional	Intel® Core i7-10610U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless
CPU Optional	Intel® Core i5-1135G7, 4 Cores, 8 Threads, Base 2.4 GHz, Turbo 4.2 GHz, 8 MB Cache, Fanless
CPU Optional	Intel® Core i7-1165G7, 4 Cores, 8 Threads, Base 2.8 GHz, Turbo 4.7 GHz, 12 MB Cache, Fanless
CPU Optional	Intel® N100, 4 Cores, 4 Threads, Base 0.8 GHz, Turbo 3.3 GHz, 6MB Cache, Fanless
Memory	J4125: 1x DDR4 SODIMM, Max 8G DDR4 J6412/N100: 1x DDR4 SODIMM, Max 16G DDR4 Core i5/i7: 2x DDR4 SODIMM, Max 64G DDR4
Storage	1 x M.2 2242/2260/2280 SATA, 1 x SATA(2.5'' SATA ) , 1 x M.2 2280 NVME
Hard Drive Capacity	128GB, 256GB, 512GB, 1TB, 2TB, 4TB, SSD, 500GB, 1TB, 2TB, 4TB HDD Optional
Network	2x 2.5 GbE RJ45 Intel i225V (4 x 2.5GbE RJ45 Intel I225v Optional)
Wireless Network	WIFI/Bluetooth Optional
I/O Interface	4 x USB2.0 , 2 x USB3.0 (J4125/J6412) 2 x USB2.0 , 4 x USB3.0 (8th/10th/11th generation intel Core i5/i7)
	2x DB-9 COM1& COM2, RS232/422/485
	1x HDMI/Audio Line-out/ Power Button
	1 x Extended IO: 4x RS232(4x3 wire COM3&COM4&COM5&COM6), GPIOx10, 1x Remote Switch
Expansion slot	M.2 3042/3052 3G/4G/5G Module, onboard SIM Card Slot
	M.2 2230 WiFi Bluetooth
Watchdog timer	1 to 65535 seconds programmable setting
Operation System	Support Windows® 10/11, WES 10, LINUX, etc.
Support	TPM 2.0
Screen
Panel size	17"
Resolution	1280*1024
Aspect ratio	4:3
Touchscreen Type	Project Capacitive Touch (10 points)
View angle	89°/89°/89°/89° (R/L/U/D)
Working voltage	9-36V DC Wide Voltage with 4PIN Aviation Connector
Other
Material	Aluminum Alloy
IP grade	Front panel IP65 waterproof
Temperature Range	Operating: -20 to 70°C, Storage: -30 to 80°C
Warranty	2 years warranty
Certificate	CE, FCC, RoHS
