Product Description
Product Description

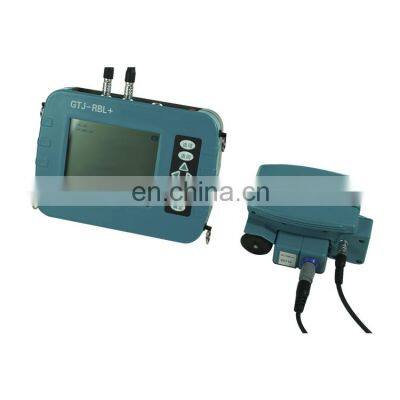

Product DescriptionThe rebar locator is a portable non-destructive testing instrument,which can used for the detection of the construction quality of reinforced concrete structures.it can measure the position of steel bars on the concrete surface and detect the thicknee of thickness of the protective layer of the steel bars and diameter of the steel barsProduct nameReinforcement protectionModelLovely-RBL+Maximum Allowable Error of Second Range Protective Layer Thickness±1mm6~79mm ±2mm80~119mm±4mm120~139mm±6mm140~200mmSection gridGraphics and Digital DisplayPower supply modeUSB,Wireless Cloud Transport(Options)Host parametersWaterproof parameters:IP65Screen size:5 inchesResolving power:320*240Volume:195*140*45mmWeight:0.8kgWorking environment requirementsTemperature:-10℃~+40℃Humidity:<90%RH1.Upgraded wireless cloud transmission function2.Adopt three anti-shell design, waterproof, dust-proof and shock-proof3.Large screen high resolution LCD screen, the interface has Chinese prompts, more intuitive display content4.Built-in large capacity memory card, storage capacity upgrade5.USB transmission simulates the host computer as a U disk and reads data as easily as a U disk6.Real-time display of protective layer thickness and steel signal image, minimum automatic locking7.Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth8.Automatic storage of test data, on-site statistical analysis results are provided immediately, which is convenient for guiding construction work9.Professionaldata analysis software, so you’re your post- processing data and report generation work can be easily completedCompany ProfileCANGZHOU LOVELY GROUP CO., LTD. is located in Cangzhou City, Hebei Province, China. A leading manufacturer of Scaffolding & Formworks accessories, Ring-lock Shoring System, Testing Machine for construction projects, industrial engineering, roads and bridges etc.Factory WorkshopHot SalesCertificationsCustomer PhotosPacking and ShippingFAQQ1:Are you a factory or trading company?A:We are a factory specializing in manufacturinf all kinds of tester.Q2:Where is the loading port?A:Qingdao port or tianjin port.Q3:What’s the MOQ of the product?A:Different item has different MOQ.normally one stand is preferred.Q4:What certificates do you have?A:We have ISO 9001.Q5:Do you have an OEM service?A:Yes.We can provide OEM and ODM services as your requirements.Q6:How long is the production cycle after ordering?A:General it is about 7-20 days.Q7:What is the payment method?A:T/T payment is preferred and other payment terms is accepted.
>>
