100L Sterile Drugs Biological Oral Liquid Eye Drop Syrup Solution Chemical Preparation Tank Machine

Product Description

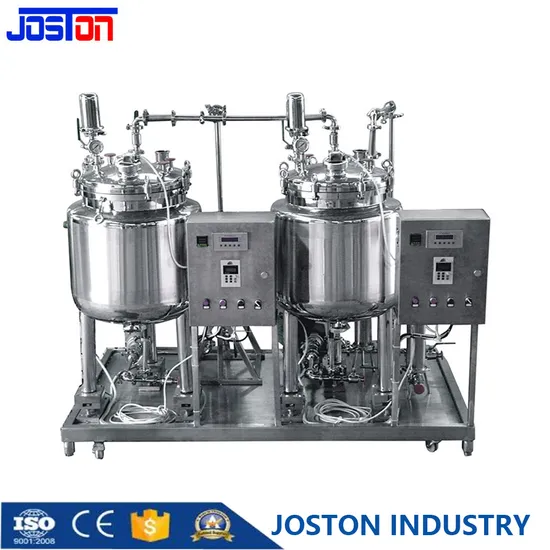

Detailed Photos
Remark:The drawing just for your reference. Product Description High Quality Stainless Steel SS304 Honey Milk Water Oil Chemical Liquid Blending Movable Steam Heating Mixing Tank is mainly used for the preparation ,emulsifying and homogenizer the suspension product ,oil phase and water phase material dissolv solution which is widely used in the sterile drugs,biological products,oral liquid ,eye drop ,syrup solution in pharmaceutical fields.
High Quality Stainless Steel SS304 Honey Milk Water Oil Chemical Liquid Blending Movable Steam Heating Mixing Tank mainly inclduing the following units:
1) manufacturing tank ( mixing tank ) : which can be single layer ,steam jacket or electrical heating jacket with insulation layer
2) bottom mounted magnetic agitator and top mounted high shear emulsifying agitator
3)control panel system : PLC/HMI control panel or common button control panel .
the advantage of PLC/HMI control system for solution preparation system:
1. Adopt aseptic design, no dead area, minimize residue.
2. PLC control of touch products, one key operation, direct and clear process flow chart, automatic liquid distribution and material transmission in the whole process; simple, convenient and user-friendly.
3. Equipped with automatic CIP online cleaning system and sip online sterilization system, the system can automatically online SIP and CIP, reducing production cost and old strength.
4. Automatic online abbreviation for filter integrity.
5. Automatic online real-time detection of weight and constant volume.
6. Automatic real-time abbreviation, recording and printing of all relevant data.

Product Parameters Technology data for High Quality Stainless Steel SS304 Honey Milk Water Oil Chemical Liquid Blending Movable Steam Heating Mixing Tank :

Model Item	TPS-100	TPS-300	TPS-500	TPS-1000	TPS-6000
Tank work volume:L	100	300	500	1000	6000
Motor power:Kw	1.1	2.2	3.0	5.5	15/22
Agitator speed :RPM	0-1440rpm or 0-2900
Output particle size: um	<2um
Inside shell pressure MPa	-0.1/0.3 (can be done as client's URS)
Jacket pressure MPa	0.3 (can be done as client's URS)
Jacket heating medium	Steam /hot water/electrical heating
Cooling medium	Chiller /cooling water /tap water

Remark :above model just for reference ,we can do according to client's URS Company Profile
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)

---
