OEM/ODM Weaving Textile Machine Price High Density Speedy Ultra Fine Water Jet Loom Model Hf-508 with Energy Saving for Flat Knitting/ Twill

Product Description

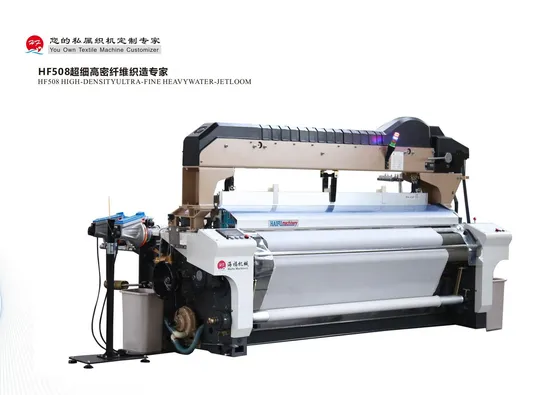

High Density Ultra-Fine Heavy Water jet loom HF508 Detailed Photos

Product Description

Sr. No	Model Name:WATER JET LOOM HF508
1	Width of Machine:	150CM 170CM	190CM	210CM	230CM	£260
		280	320	360	380	£400
2	Control Panel:	Denken	XINLIAO	Sanhe	Inovance
3	Weft Yarn Insetion:	Drum	One	Two	Three	£Four
	Feeder	ROJ	Sanhe	XINLIAO	Zhongsen
4	Motor	2.2KW	2.8KW	3.2KW	3.6KW	£4.2KW
4	Shedding	Plain	Cam	Dobby	Jacquard
5	Shedding Brand	Staubli	Niupai	Changshu	Longpai
6	Frames	6	8	10	12	16
	Frames Brand:	New Lite	Haifu	Niupai	Star Lite
7	Beam	800mm Flange	914mm Flange	1.5	2
8	Cloth Roller (2 PCs)	Aluminium Heavy	1.5	2
9	Reed (2 PCs)	1.5		2
	Take up	Mechnical		Electronical
	Let off	Mechnical		Electronical
10	Bearings in Box	NSK		FAG
11	Machine Cover	Plastic		Steel
12	Nozzle	MDH Korea
13	Valve Sheet	AWA Japan		MDH Korea
14	Heald Wires	Negentec	Sanmenxia	Haifu

HF508 Opening part increased bearing, improve the waterproof design, mechanical water, fan is installed on the right side, optimizing the whole structure.
Beating up part of the crank in hand made adjustments to increase the beating strength, reduce the beating vibration, reducing the reed on warp friction.
Front and rear cross beam and five angle tubes and triangular tube enhanced the stability, to fine lines, high density fabric weaving provides a great advantage.

production process
Our Advantages
Company Profile
Qingdao Haifu Machinery Manufacture Co., Ltd. is specializing in manufacturing and supplying water-jet loom.
In the past 15 years, Haifu machinery has supplied world wide approximately 89000 sets of water jet loom machine, and it was among the first facotry in China making water jet loom, the company now has two facotries, one in Qingdao, the other one in Siyang, jiangsu province, haifu machinery is making sure all the machine given to the customer are at the same quaity, same best quality, we are not only focus on the price, but we are also focus on our brand name, we believe that with our quality always insured, customer will sees it and come back to us with more customers.
Our machine now is running in Uzibekistan, Mexico, India, Turkmenistan, Pakistan. Every one of our customer was atractted by the way we make machines and decided to buy, and of course, satisfied with our machine and try to buy more.

---
