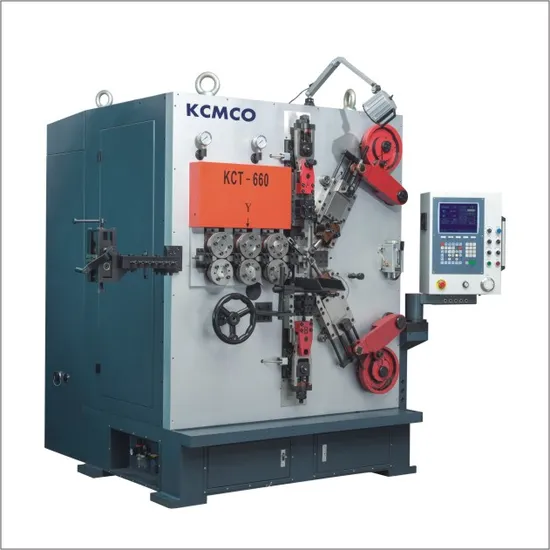

6mm CNC tower spring coiling machine with swing cutter

US$1.00-10.00 1 Set (MOQ)

Basic Info.

Model NO.
KCT-660-006
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Total Power
33.6kw
Axes Count
6
Wire Size Range
2.5~6.0mm
Max Feeding Length
Unlimited
Dimension(L*W*H)
1659*1455*2000mm
Power AC
3~380V50Hz
Transport Package
Vacuum Packed&Standard Fumigated Wooden Case
Specification
IS0 9001: 2008, CE, SGS
Trademark
KCMCO
Origin
China
HS Code
84633000
Production Capacity
100 Sets/Year

Product Description


1. This is a machine especially for making compression spring.
2. It is new in design, stable in operation. Precise in the products it make.
3. The servo motor of it is imported from Japan and we introduce the most famous yitu computer control system from Taiwan.
4. With function of graphics system, only need to input the relative parameters, the wire diameter, the number of turns and wire diameters etc., then the program will be generated automatically in the computer
5. With fuction of camera spring length gauge, the spring will be amplifying and showed on the computer, it can help you to control the length accurate
Axis count 6
Wire size range 2.5-6
Max outside diameter 110
Max pitch of thread 80
Max feeding speed 60m/min
Spring index 3
Feeding axis count 3 pairs
Feeding motor 15 KW
Upper cutter motor 5.5KW
Under cutter motor 5.5KW
Cam motor 2.9KW*2
Pitch motor 1.8KW
Dimension 1659*1455*2000
Weight 4800KG
Power 3-380AVC
