CO2 Flying/Fly Laser Marking/Printing/Engraving/Engraver/Marker/Printer Machine for Plastic Copper Stainless Steel/Aluminum Leather/Pipe/Tube

Product Description

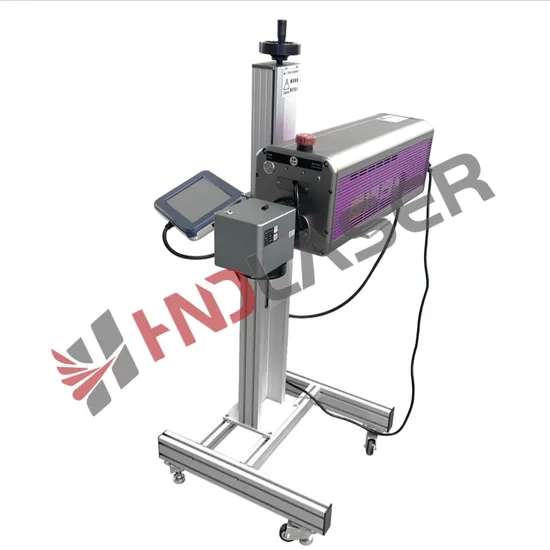

Flying CO2 Laser Marking Coding Printing Machine
(Can be customized to your needs)
Upgrading a static laser marking machine to a flying marking machine(Laser coding machine ) does place higher demands on the equipment. This upgrade not only needs to consider the durability and reliability of the equipment, but also needs to ensure that it can work stably under various environmental conditions.
1.Continuous working ability: the equipment needs to work continuously for a long period of time without frequent stops for maintenance or cooling, which puts high demands on the performance of the laser source and cooling system.

2.Temperature adaptability: the equipment must be able to operate stably in different temperature conditions, whether high or low temperature, can not affect its marking effect.

3.High-speed marking: flying marking requires the equipment to be able to keep up with the speed of the production line, which puts high demands on the scanning speed, response time and software control of the laser.

4.Equipment Durability: Equipment needs to be highly durable to withstand the challenges of the production environment, including dust, vibration and humidity.

5.Software control: The software needs to be able to accurately control the speed, position and content of the laser marking to ensure that high quality marking results are maintained despite high speed movement.
All these test the supplier's design and manufacturing level. Only suppliers with strong technical strength and rich experience can provide reliable flying laser marking solutions.

2. Better Performance than Standard Model
DIY Computer Configuration:
Empower your creativity and productivity by configuring your own computers. Select high-performance PCs or laptops to perfectly match and optimize the laser equipment performance to suit your specific requirements.
High Performance Computing Requirements:
With a cutting-edge 3D galvanometer, enjoy enhanced computing capabilities powered by advanced CPUs and GPUs. This ensures efficient management of intricate 3D graphics and models, delivering superior marking quality.

NO.	Project	Parameter
1	Model number	HC20XX-B
2	Laser power	40W/50W/60W/100W (optional)
3	Laser level	Class IV (IEC 60825-1)
4	Laser type	Sealed CO2 laser (RF tube)
5	Wavelength	10.6/10.2/9.3μm
6	Marking field	110*110mm-300*300mm (optional)
7	Marking depth	>0.4mm
8	Marking speed	≤10000mm/s(optional)
9	Marking line width	>0.4mm
10	Min character size	0.5mm
11	Repeat accuracy	0.01mm
12	Cooling method	Air-cooled
13	Laser source expected life	>50,000 hours
14	Standard user interface	PC/Laptop
15	Consumables	No
16	Temperature	0-45ºC
17	Power consumption	700 W
18	Electrical requirement	L/N/PE 100 - 240 VAC, 50/60 Hz

3. Wide Range of Applications
Offices and Studios:
Compact yet powerful, our laser marking station is specifically tailored for offices and studios. Seamlessly handle diverse small-batch and custom marking tasks with unmatched ease and efficiency.

Startups and Innovations
The ideal partner for startups and innovation hubs, maximizing space and cost-effectiveness. Swiftly adapts to various marking demands, supporting agile production and rapid prototyping with ease.

Research and Teaching:
A crucial tool in research and education, facilitating lab projects, student experiments, demonstrations, and training courses in academic settings with unparalleled reliability.

Outdoor Work:
With mobile power solutions, our station is perfect for in-field tasks from pickup trucks, vans, and more. It efficiently satisfies outdoor and on-site marking requirements, ensuring flexibility and reliability.

Materials		Reaction	Materials		Reaction
Metal	Stainless steel	-	Plastic	PE	√
	Aluminum	-		PP	√
	Anodized aluminum	√		PVC	√√
	Brass	-		PPR	√
	Coated metal	√		ABS	√
	Copper	-		PET	√√
	Gold, silver, nickel, platinum	-		Nylon	√
	Carbon steel	-		MPP	√
	Titanium	-		PC	√
Ceramics	Ceramic	√	Plastic films and foils	Aluminized foil	√√
Rubber	Natural rubber	√√		Polyethylene terephthalate (PET)	√√
	Synthetic rubber	√√		Oriented polypropylene (OPP)	√√

Exceptional Reaction: √√ Admirable Reaction: √ Unsatisfactory Reaction: - APPLICATION
Advantages & Accessories

Related Type
Advantage
Non-consumable
Say goodbye to consumable replacement costs
Operates solely on electricity
A robust one-time investment
Maintenance-free operation
Eco-friendly and sustainable
Innovative ink-free technology
A solvent-free process
Enjoy an odorless operation
Non-toxic and safe to use
Non-corrosive materials
Energy-efficient systems
Minimally wasteful in operation
Ensures 100% resource utilization
Produces zero emissions
Delivers permanent and resilient markings
Precision-controlled indentation depth
Resistant to oxidation effects
No color degradation over time
Enhances traceability and tracking
Assured safety and reliability
OPTIONAL ACCESSORIES
FOCUS AREAS

EXHIBITIONS AND FAIRS
PLANTS AND TEAMS
CERTIFICATION DISPLAY
Proudly certified by a renowned third-party organization, our machines are backed by a dependable warranty service. Should you need any assistance or support, our dedicated team is always at your beck and call.


COMPANY INFORMATION
ZHANGJAGANG HNDLASER TECHNOLOGY CO., LTD
HNDLASER HNDLaser Technology Co., Ltd. is a distinguished national high-tech enterprise, funded by HNDLASER Established in Zhangjiagang, we excel in seamlessly integrating research, development, production, and application of cutting-edge laser equipment. Our investment portfolio is robust, featuring Zhangjiagang HND Intelligent Equipment Co. and numerous other eminent enterprises.
Thanks to steady increases in annual R&D investments, our innovations have achieved notable market acclaim, ensuring a robust and stable production input across the entire laser industrial chain. HNDLASER is dedicated to a people-first, innovation-driven philosophy. We prioritize both technological advancement and talent cultivation, which fortifies our growing market presence and the respected reputation of our products.

FAQ
Q1: What is the warranty period like?
A1: During the warranty period, if any major parts (excluding consumables) develop issues, they will be replaced or repaired at no additional cost.
Q2: What payment terms do you accept?
A2: We accept a variety of payment methods including TT, Western Union, Paypal, LC, and Cash, among others.
Q3: Do you provide CE documents and other clearance documents?
A3: Certainly, we supply the original documents. Following shipment, you will receive the CE document, packing list, commercial invoice, and sales contract for an effortless customs clearance process.
Q4: If I am unfamiliar with the product usage upon receipt or encounter issues, how should I proceed?
A4: We offer a comprehensive user manual, enriched with illustrations and a USB disk for step-by-step learning. Furthermore, any machine updates will be provided monthly for your continued convenience.
Q5:How can I obtain a sample to verify the results?
A5: You are welcome to send us a sample, which we will test for you at no charge..
Q6: When will I receive a quote?
A6: Our expert team will respond to your inquiry within an impressive 12-hour window.

---
