White Chasing Light Flowing Water Effect IC Ws2811 24V 2835 120LEDs/M IP20 Pixel Horse Racing Running Smart LED Strip

Product Description

24V 120led/m LED Strip White Chasing Light Flowing Water Effect IC WS2811 2835 Horse Racing Running Smart LED Strip Product Description
Product Parameter

Model No.	KDY-2835-PX120W24V
LED Quantity	120LEDs/m
Color Temperature	3000K/4000k/6000k
Color	WW / NW / CW
Voltage	24V DC
Power (w/m)	9.6w
CRI(RA>)	CRI>80 (CRI >90 / CRI >95 optional)
PCB Width	8mm ( 10mm optional )
PCB materials	2Oz Double-Sided pure copper Circuit Board
LED Suppliers	Honglitronic / Samsung
LED Chip Brand	Sanan ( Epistar / Samsung optional )
LEDs Material	packaged by 99.99% pure gold wire, red copper pad
LED BINs	2-Step/3-Step/6-Step, same BIN for each order
Luminous (lm)	24-26lm/LED ( 1800-2400lm/m )
IP Rate	IP20 (33) / IP65 / IP66/ IP67 / IP68
Cutting min unit	per 15 led
View Angle	120°
Product Size (mm)	5000*8*1.4mm
Package (m/roll)	5m/roll ( customized length available, color box / anti-static bag packing )
Working Temperature (ºC)	-20-60°
IC	WS2811
Input voltage(V)	DC24V
Warranty	2 Years

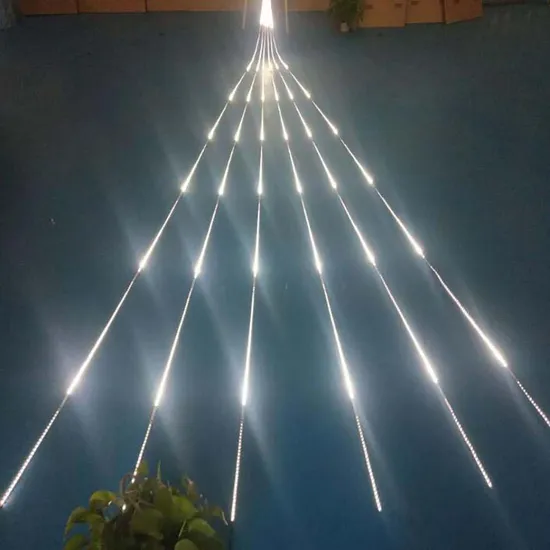

Detailed Photos
Our Advantages
Our Advantage: 1. TUV CE, FCC, CE, RoHS, IEC/EN62471 certificates.
2. High CRI >95Ra, super brightness, ideal for restaurant and super market, make everything looks more real. 3. We do large stock materials for products to keep the same color temperature and PCB and stable quality for each batch. 4. Quick delivery time 3-5 working days Product Parameters
Features as follow:
1. LED source: 24-26lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size: 8mm/10mm width FPC and smaller components, LED stripe light is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED strip 2835 have more than 50000hours working life with 3 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our flexible led strip light have different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS, LM-80 and IEC/EN62471 photobiological safety compliant.\
installation:
Protection Level:
IP20 ( Bare Board ) be used indoor and keep away from rain wet IP65 ( Silicone dropper ) fit on damp location (bathroom,kitchen and corridor...) IP67 ( Silicone tube protection ) fit on indoor and outdoor IP68 ( Silicone tube with silicone filling ) can be used outdoor and underwater
Other main product:
Applications: . Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.
Certifications
Certificates:
Packaging and shipping : 1. Packaging: 5 meters/roll, Carton box packing 100 rolls per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations. Company Profile
Our Factory:
Shenzhen Kediya Technology Co., Ltd. Is a professional high-tech Led light products enterprise with independent R&D, production lines, marketing, after services department. We focus on OEM/ODM Led strip light, LED linear light , LED Neon flex, flexible pixel strips, rigid pixel bars, LED profile, LED Modules and other relative accessories . Kediya has an area of 1500 square meters. more than 5 R&D engineers and over 60 workers, 6 auto SMD production lines and 7 assembly production lines. The daily output is about 350,000 Meters/pieces monthly. We adopt advanced wave soldering, reflow soldering and SMD machines, Integrating sphere, Glue dispenser machine, Aging test standard laboratory and so on. We have strong capability in R&D, Production, Marketing and customer service with a wide range, good quality, reasonable prices and stylish designs, Growing to be a leading supplier in this field.
Kediya is consistently working on improving and designing new products. By our advanced technology, superior product quality, flexible marketing strategy, fast delivery and excellent service, we have got very good response , taken a solid first step and is aiming to become the leading of LED industry in China.
Our market has now been expanded to over 30 countries and regions including Europe, America, Oceania, Africa, Southeast Asia, the Middle East and Japan. Our principle is "Quality, Innovation, Integrity and Service"
Our pursuit is to provide better solutions and technical support, create greater value for our customers. FAQ
FAQ:
Q1: Are you factory or trading company?
A1:We are professional Manufacturer of LED strip light, COB strip light , digital strip light, Neon Light, Factory located in Shenzhen City. Factory direct price.
Q1 :How can you ensure high quality?
A1: 1.We have our own material production workshop and die factory for 10 years.
2. workers should be well trained before go to work.
3. 100% QC on line and final inspection, no any defective products can be out from our factory.
4. We have a lot of certificates to ensure our quality, such as ISO9001:2015, ISO14001:2015,SGS certificate, etc.
Q2:If I need sample, could you support?
A2: We can supply you with the sample for free, but the delivery charges will be covered by our customers. For avoiding the misunderstanding, it is appreciated if you can provide the International Express Account for Freight Collect.
Q3: Can you provide custom service?
A3: Yes! We have professional designer can provide free design for you. Please send your requirements to us!
Q4:How do you charge the mold fee?
A4: In case we need to open new mold for your ordered profiles, the mold fee will be refunded to customers when your order quantity reaches a certain amount.
Q5. How do you ship the goods and how long does it take to arrive?
A5: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. How to order custom LED light?
A6: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7. How long is your product warranty?
A7: We offer 2-5 years warranty to our products.
During the warranty time, if any quality problem we will repair or even replace for you for free.
Q8. What's your leadtime?
A8:. The sample order leadtime will be 3-5days .
Small batch order 10-15 days
Negotiable delivery time for large orders

---
