5000lph Electrodeionization Equipment High Purity Water EDI System

Product Description

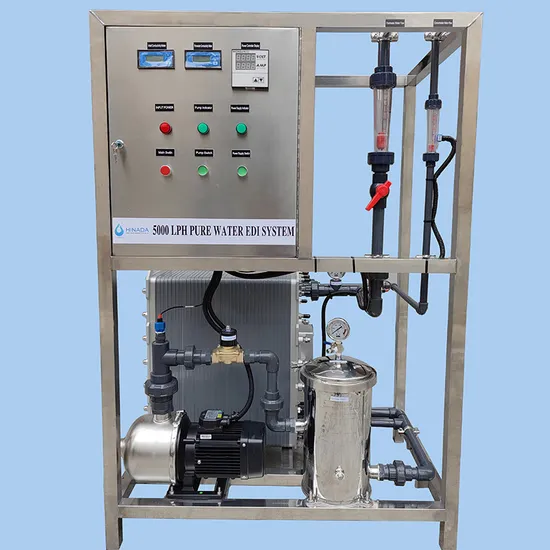

5000LPH Electrodeionization Equipment High Purity Water EDI System
This EDI System with capacity of 5000LPH is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC Power to provide ultrapure water that the resisitivity above 15 MΩ.cm, apply for pharmaceutical , biotechnology, electronic conductor industries and so on. EDI is typically used to polish reverse Osmosis (RO ) permeate, and is a smart alternative to- and effective replacement of- conventional mixed bed ion exchange(IX).
This 5000LPH EDI System is made by Hinada Water Treatment, which will be shipped to India, one of the biological pharmacies factories.
The EDI System main parts, including: Booster pump, Cartridge Filter, EDI Modular and Power Controller.EDI Stacks Specification

Type	HND-500L	HND-1000L	HND-3000L	HND-5000L
Nominal flow rate(m3/h)	0.5	1.0	3.0	1.5
Recovery rates (%)	75-85	85-95	90-95	90-95
Resistivity(MΩ .cm)	≥15	≥15	≥15	≥15
Working voltage Range(VDC)	18-50	25-70	50-150	70--250
Working current (ADC)	2.5-3.2	2.5-3.2	2.5-3.2	2.5-3.2
Working Pressure(MPa)	0.15-0.4	0.15-0.4	0.15-0.4	0.15-0.4
Maximum pressure(MPa)	0.4	0.4	0.4	0.4
Clean Water Input /Output Port	DN25	DN25	DN25	DN25
Concentrated input/ Outlet Port	DN20	DN20	DN20	DN20
Dimensions (Width x height x depth)	315x685x145mm	315x685x209mm	315x685x377mm	315x685x515mm
Shipping weight	50kgs	63kgs	90kgs	136kgs

EDI System Feed Water Specifications:

Feed Water Specifications
Total Exchangeable Anions (TEA as CaCO3)	<60mg/L
Conductivity Equivalent	<103µS/cm
Temperature	5-45 degree
Total Hardness (As CaCO3)	<1.0mg/L
Silica (SiO2)	<1.0mg/L
Total Organic carbon (TOC as C)	<0.5mg/L
Total Chlorine	<0.05mg/L
Fe, Mn, H2S	<0.01mg/L
Boron	<1.0mg/L
PH	5--10
Oil and Grease	Nondetectable
Particulate	2 stages RO Permeate better
Oxidizing Agents	Nondetectable
Color	<5 APHA

EDI Permeate Water Quality
Resistivity	>10Mohm-cm
Sodium	<3ppb
Silica (SiO2)	As low as 5ppb
Sodium removal efficiencies	>99.9% removal
Silica (SiO2) removal efficiencies	Up to 99% removal
Operation Parameters
Recovery	Up to 96%
Voltage	0-300VDC
Amperage	0-5.2ADV
Inlet Pressure	<6.0 bar
Pressure Drop	<1.5-3 bar
Maximum Sanitization temperature	60 degrees
Maximum Sanitization Inlet Pressure	2.1 bar

EDI Modular treatment Process:The EDI Modular has many advantages:
* Remove expensive and hazardous chemicals used in ion-exchange resin regeneration
* Save energy and operating cost
* Low facility size requirement

---
