Universal Rotary Head Milling Machine, Milling and Drilling Machine

Product Description

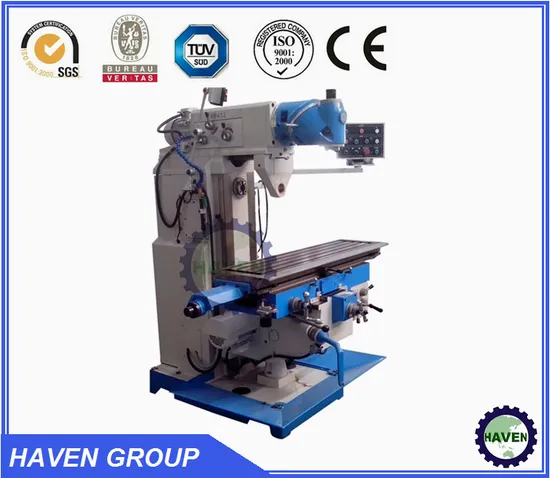

Universal Rotary Head Milling Machine
(Picture for reference only)
The Universal Rotary-head Knee-type milling machine is widely used in the machining workshop, with optional accessories as vertical milling head, dividing head, rotary table, machine vice, milling chuck, etc.
Standard Accessories
Milling-cutter Mandrel
Milling-Milling machine with the middle set of taper
Milling machine mandrel(3sets)32#, 27#, 22#
Milling cutter Mandrel wrench,
Milling drawbars(2), Oil gun, wrench
Nut, Foundation screw
Optional
Vertical milling head
Dividing head
Milling chuck
Machine vice
Rotary table
Digital readout(2 dimensional or 3 dimensional)

Item	Parameter
worktable area(width*length):	350*1600mm or 350*2000mm
Max. longitudinal travel(manual)/(power)	1000/900mm or 1400/1300mm
Max. transversal travel(manual)/(power)	300/280mm
Max. vertical travel(manual)/(power)	430/400mm
T-slots(number of slot-width*pitch)	5-18*65mm
Distance from center line of horizontal spindle to table surface	30-430mm
Distance from vertical spindle nose to table	50-550mm
Horizontal Spindle taper	7: 24/ISO50
Vertical spindle taper	7: 24/ISO40
Max. swivel angle of universal rotary head	360°
Max. swivel angle of table	± 45°
Spindle speed range (horizontal/vertical)	35-700/90-1450r/min
Table feed range (longitudinal/cross)	15-750mm/min
Table feed range(vertical)	5-250mm/min
Fast moving of table(longitudinal cross/vertical)	1920/640mm/min
Main Power(horizontal/vertical)	7.5/3KW
Feed motor	1.9/1.3kw
Motor of coolant	0.125kw
Packing Size(L× W× H)	2190× 2230× 2140mm
Net weight	3200/3500kg

WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting

Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige

---
