Galin 2020 Hot / Cheaper / Best Selling Lab / Test / Portable Powder Coating / Spray Machine Galinl-02c

Product Description

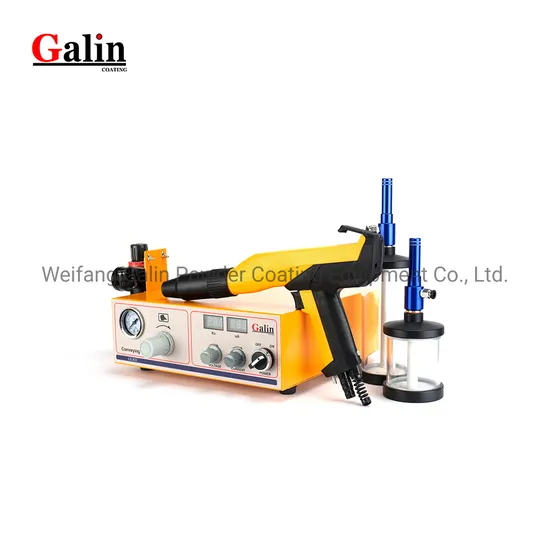

Galin lab / portable powder coating machine (GalinL-02C)

Powder Coating Machine ( GalinL-02C )Dimensions Width: 444mm Depth: 310mm Height: 250mm Weight: 8KG Container Capacity: 200ML or 500ML

GALIN POWDER COATING MACHINE (GalinL-02C) Electrical data Nominal input voltage: 220V(100V-240V) Frequency: 50-60 Hz Connected load(without vibrator): 140VA Nominal output voltage(to gun): eff. 10V Nominal output current(to gun): max. 1.2A Connection for rinsing function: 24 VDC max.3W Temperature rang: 0ºC - +40ºC(+32ºF - +104ºF) Max. surface temperature: 120ºC(+248ºF) Approvals: 3 D IP54 120ºC

GALIN POWDER COATING MACHINE (GalinL-02C) Pneumatical data MAX.input pressure: 10bar MIN.input pressure: 6bar Input pressure (Dynamic based on pressure regulator setting): 5.5bar/80psi Max.water vapor content of the compressed air: 1.3g/m Max.oil vapor content of the compressed air: 0.1mg/m Max.compressed air consumption: 11Nm/h

GALIN POWDER COATING MACHINE (OPTFlex-2L) Processible powder Plastic Powder: √ Metallic Powder: √ Enamel Powder: ×

GALIN POWDER COATING MACHINE (GalinL-02C) DETAILS

1.Shape: user-friendly design 2.Material: a.Gun Shell: anti-static material to protect the high pressure from running away b.Cascade Shell: anti-static materials are also adopted to protect the high pressure from losing,double protection to ensure high voltage stability 3.Powder ascending rate: 70%~85%

Galin powder coating machine can be used for Hub
Galin powder coating machine can be used for Furnitur
Galin powder coating machine can be used for Metal Rail
Galin powder coating machine can be used for Metal products
Galin powder coating machine can be used for Glass products
Galin powder coating machine can be used for Metal or Glass Cup
Galin powder coating machine can be used for Any Metal or Glass you want
Galin Lab/test powder coating machine (OPTFlex-2L) can be used for Add Color
Galin Lab/test powder coating machine (OPTFlex-2L) can be used for Powder Color Test
Galin Lab/test powder coating machine (OPTFlex-2L) can be used for Samll and Complex piece

FAQ

Q: Can you provide the whole workshop manual / automotive equipment?
A: Yes, we can provide every equipment that needed.
Q: Can I have a visit to your company before placing an order?
A: Sure, welcome to visit us. Our company locates in Weifang, Shandong Province.
Q: Do you offer samples?
A: You can take 1-3 inserts or nozzles in first order for testing.
Q: What kind of support can I get if I am your agent?
A: Bottom price, free catalogs and unique customization for marketing, and on site training.
Q: What's the lead time?
A: The lead time of our products is 2 ~10 days, depending on how many and what kind of equipment you ordered.
Q: What is your payment terms?
A: We can accept T/T , L/C , Paypal , Western union , Moneygram , etc.
Q: How long is the warranty?
A: Our warranty is 12 months.
Q: Can I order special color or special size that we need?
A: Yes, the color and size can be customized as client's requests ,but some have quantity requirement.
Q: Can I know how to assemble your spray booth or other equipment?
A: Mostly the complex installation is already finished before delivery, you can easily finish the last according to the installation instructions.And we also can send the assemble vedio to you for your reference.
