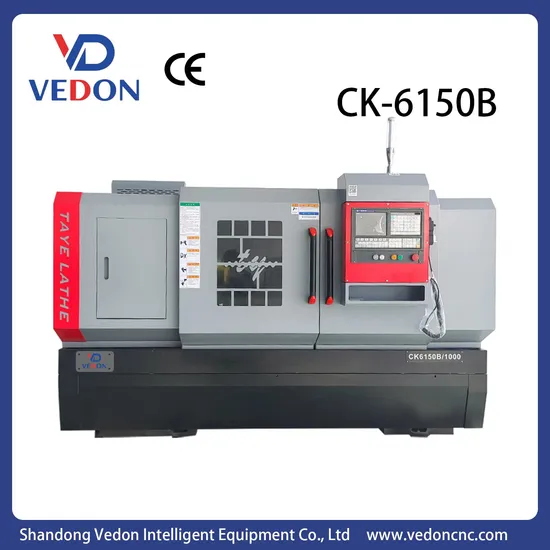

Ck6150b CNC Lathe Machine Centerlength 1500mm Spindle Bore 105mm Heavy Duty with GSK980tdi Control System 220V

Product Description

Overview
Application:Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.tapping, boring, etc.
Machine Details
Performance characteristics of Flat Bed CNC LatheThe machine is widely used in electrical appliances, instrumentation industry, automobile and motorcycle accessories, fastener bearing, phtotgraphic equipment, film machinery, hardware, various watches, cultural and educational supplies, motors, valves, gas pipes and other high-precision complex parts processing and manufacturing is the most ideal and efficient equipment in the hardware machinery processing industry. Good accuracy retention
The guide rail is precisely ground after high-frequency quenching treatment.
The main shaft is a geartransmission mechanism
equipped with frequency converter to realize three-speed stepless speed change.
Four-station electric tool rest
It can turn all kindls of disc and shaft parts into internal and external circles, arcs, end faces and threads.
All feed shafts are driven by servo motors
The screw rod and motor shaft are connected by coupling without gap,and the screw rod is also stretched and installed, which improves the rigidity of the machine tool.
GSK 980TB3i control system
Optional:
KND-1000t,
GSK980TDi/TDC/TC3,
HNC-808D
Specifications
Important Note:1. Please confirm your local voltage with our sales staff before ordering.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.

Specification
Model	CK-6150Br
Z-axis travel	1000mm/1500mm/2000mm
X-axis servo motor	6NM
Z-axis servo motor	10NM(1000mm/1500mm)15NM(2000mm)
X/Z rapid feed speed	8/12 mm/min
Spindle diameter	ф82mm
Spindle speed step	3
Spindle nose	A2-8
Spindle bore (dia)	Metric 90(1:20)
Range of spindle speed	45-180180-770 600-1600
Power of main motor	7.5KW/11KW(2000)
Tailstock quill dia.	75mm
Stroke of tailstock sleeve	150mm
Tailstock quill taper	MT5
Chuck Size	250 Manual chuck
Section of tool shank	25*25
Turret type	4-station electric tool holder 192*192
Workpiece accuracy	IT6-IT7
Workpiece surface roughness	Ra<3.2
Repeat positioning accuracy	X0.012 z0.016
Noise	<80Db
Power specification and capacity	3ph;380V+10%,50HZ,11KVA
Overall dimension(LxWxH)	2900/3500/3900*1800*2100
Machine weight	2700/3600/4200KG

Application
Packaging & Shipping
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
