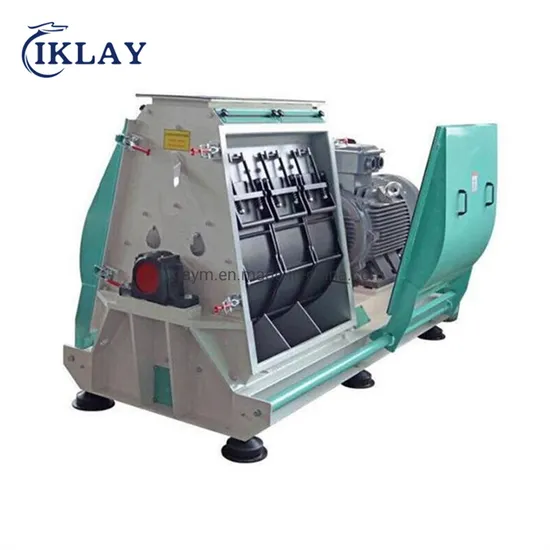

Grain Wheat Soyabean Barley Sorghum Corn Hammer Mill / Grinder for Maize Stalk/ Maize Grinding Mill

Product Description

Grain wheat soyabean barley sorghum corn hammer mill / grinder for maize stalk/ maize grinding mill
TECHNICAL PARAMETER

Model		SFSP56*36	SFSP66*40		SFSP66*60		SFSP66*80		SFSP66*100		SFSP66*120
Parameter
Rotor diameter (mm)		560	660		660		660		660		660
Spindle rotate speed (rpm)		2940	2960		2970		2970		2980		2980
Hammer line speed (m/s)		102	102		102		102		102		102
Grinding room width (mm)		360	400		600		800		1000		1200
Hammer quantity (fine grinding)		24	40		56		84/116		120		136
Power( kw)		22	37	45	55	75	90	110	132	160	200	220
Normal air volume	Fine grinding	50	55	60	72	78	95	102	145	155	190	205
( m3/min)
Capacity(t/h)		1-3	2-3	2-5	3-6	5-7	6-8	8-10	10-12	12-15	15-20	20-25
Equipment resistance			Fine grinding 120~150mm H2O

FEATURES 1.The grinding chamber is designed with regrinding, which can increase its output by more than 15% and the sizes are more even.

2.Equipped with wear resistant hammer that is alternate permutation, the finished products ane high in accuracy and uniform in size. Vacuum welded hammers and surface hardened hammer pin extend the service life and futher decrease the consumption of accessories.

3.The rotor is rotatable clockwise and counterclockwise and materials can be fed bidirectionally,which decreases the wear of hammers and thus lowers the consumption of accessories.The rotor has experienced dynamic balance test,ensuring less vibration and long service life.

4.By changing the hammer position on the rotor,two crush of gaps are formed between hammers and screen,which are fit to normal crushing and fine crushing.When in normal crushing,it can crush evenly and improve the production capacity. When the gap between hammer and screen is smaller,it's fit to fiber crushing and fine crushing.

5.There are quick access doors set on both sides of the mill to facilitate maintenance and change of screen,and doors can be locked quickly.
MORE PHOTOS AND DETAILS
DELIVERY
Liyang Iklay Machinery Co., Ltd. is a professional manufacturer and supplier specialized in designing, manufacturing, installing and commissioning: Poultry&livestock&aqua feed production line, Biomass pellet production line, Cat litter production line; Spare parts for hammer mill& pellet mill, such as ring dies, rollers, hammer blades and screens.
Our main products include precleaner, hammer mill, mixer, pellet mill, cooler, screener, automatic packing machine other auxililary equipments and spare parts etc. We have more than 10 years rich experience in the field.
We have been committed to providing customers with valuable services and high-quality products to satisfy your needs. It is for this reason that we have become a reliable and long time partner for our customer. Looking forward to our cooperation and realize win-win.


1. Project Investment Analysis:
According to customer needs, formula, production capacity and etc, IKLAY gives customers detailed display of each equipment of the complete production line, quotations, and designs the most suitable production line for customers.
2. Finish whole process from order to delivery:
IKLAY meets the needs of user with excellent whole process management, from the material procurement, manufacturing, quality inspection and test machines before delivery, process assurance to tracking of the process, which provide quality and security for customer.
3. Installation training:
We not only send engineers to the customer site for guidance, installation, commissioning, trial operation and formal operation, but also train operators to ensure stable and safe operation of the production line.
4. Regular return visits:
Regular visits and contacts with customers are used to know customers' use of products, listen to customers' opinions, and provide timely services for customers with quality problems.

---
