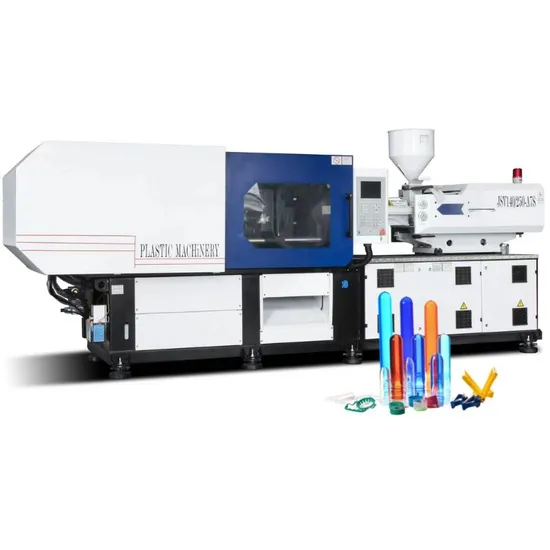

China Top Quality Preform Injection Molding Machine Pet Bottle Preform Making Machine

Product Description

Products Description
Bottle preform machine There is a large variety of preform machines available at our factory. The wide-neck preform machine, hot filling bottle, and 20-liter bottle preform machine are available in diverse sizes and designs. We always follow stringent control measures to provide high-quality preform machines considering your industrial budget.
Feature of Injection Machine
1).Power saving: Save power 30%-60% 2).Oil saving: Using high performance filter device to increase using life of hydraulic oil.
3).High speed: Increase 20% performance capacity by using variable displacement pump.
4).No overflowing heating, low oil temperature saves cooling water, and increases the using life of sealing elements.
Product Paramenters

		MW268			MW320
Injection		A	B	C	A	B	C
Shout volume	cm³	595	763	951	918	1145	1435
Shot eight	g/	559	716	893	836	1077	1349
(PS)	Oz	19.8	25.3	31.6	30.2	37.7	47.2
Screw diameter	Mm	53	60	67	60	67	75
Injection pressure	Mpa	203	162	132	193	154	123
Screw L: D ratio	----	22:1	20:1	18:1	25:1	22:1	19:1
Screw stroke	Mm	270			325
Screw speed(stepless)	r/min	0~188			0~146
Clamping unit
Clamping force	KN	2680			3200
Opening stroke	mm	490			610
Platen size	mmxmm	815x815			940x940
Space between tie bars	mmxmm	560x560			660x660
Max.daylight	mm	1090			1280
Mold thiskness (min-max)	mm	195~600			250~670
Hydraulic ejection stroke	mm	160			160
Hydraulic ejection force	KN	77			77
Power unit
Hydraulic system pressure	Mpa	17.5			17.5
Pump motor	Kw	22			30
Heating capacity	Kw	18			20
Number of temp control zones	------	5+nozzle			5+nozzle
General
Dry-cycle time	sec	5.0			5.0
Oil tank capacity	L	450			630
Machine dimensions(LXWXH)	Mxmxm	6.57x1.6x2.15			7.46x1.65x2.25
Machine weight	kg	10000			13000

Packing and Shipping
Packaging: Stable wooden packaging protects the machine from impact and damage. A wrapped plastic film protects the machine from moisture and corrosion. This is a fumigation-free package that supports smooth customs clearance. Large machines are fixed in containers without packaging.
Shipping: At LCL, we worked with a reliable logistics team to get the machine to the port quickly and safely. At FCL, we obtain containers, and our skilled workers carefully load the containers. As for forwarders, we have professional and long-term cooperation forwarders who can process your shipments smoothly. We also want to achieve seamless cooperation with forwarders at your convenience.
Company Profile
Maiwei has been committed to the research of blow molding technology for many years. It has continuously accumulated experience in blow molding and improved product equipment to achieve more stable work, lower energy consumption and more durability. The product range includes: dairy products bottles, wine bottles, oil bottles, laundry detergent bottles, engine oil bottles, sprayers, hollow toys and other hollow plastic products. We'll actually help you solve your packaging blow molding problems, not just sell equipment. The machine has a wide application range and can increase or decrease the air source system according to user requirements. It has strong flexibility, low energy consumption and high efficiency.


Exhibition

FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service? We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.

---
