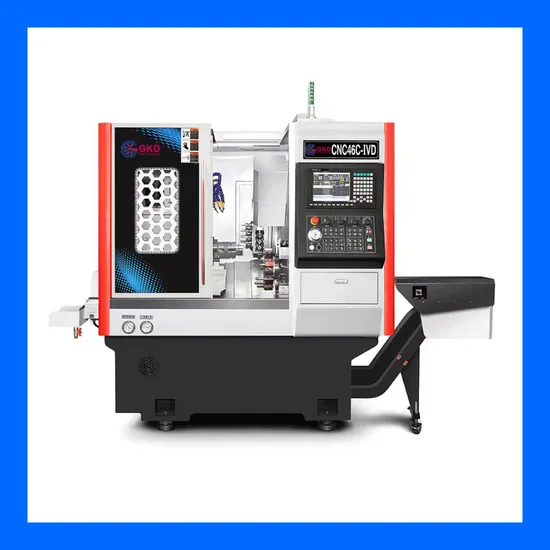

Driven Head Living Tools CNC Lathe

Product Description

Discover the pinnacle of precision and versatility with our CNC turning lathe center, meticulously designed with a driven head and integrated living tool machine. Elevate your manufacturing process to new heights of efficiency and accuracy. CNC (Computer Numerical Control) turning lathes have truly transformed the landscape of the manufacturing industry. These technological marvels deliver unparalleled precision and efficiency in production. From drilling, tapping, turning, to boring, these machines execute a vast array of operations flawlessly. They are indispensable across multiple industries, including automotive, aerospace, medical, and electronics, for crafting intricate and high-precision components.
In this comprehensive article, we delve into the intricate components of a CNC turning lathe, unravel its working principles, and highlight its myriad applications across various sectors.
Product Parameters

Model	CNC46C-IVD
Spindle nose type	A2-5
Spindle through-hole diameter (mm)	56
Bar through diameter (mm)	46
Maximum rotation diameter (mm)	500
Max processing length (mm)	300
The largest car milling diameter(mm)	230
Knife platform and spindle center height(mm)	65
Chuck size	6 inch
Controller	Syntec
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
Spindle speed (rpm)	0-6000
A/B Axis speed(double motor) (r.p.m)	0-4000
A Axis power tool model	4*ER25
B Axis power tool model	4*ER25
X/Z axis rapid feeding (m/min)	≤25
Y axis rapid feeding (m/min)	20
X/Z axis positioning accuracy (mm)	0.002
X/Z axis repeat position accuracy (mm)	0.003
X axis travel (mm)	1060
Y axis travel (mm)	190
Z axis travel (mm)	400
Number of turret (pcs)	8
Spindle power (KW)	7.5
X axis power (KW)	2.0(with brake)
Y axis power (KW)	2.0(with brake)
Z axis power (KW)	2.0
A/B Axis power(double motor,servo) (KW)	2.0
Cutting pump power (KW)	0.37
Power head and motor(KW)	2.0/1.0
Hydraulic tank capacity (L)	60
Tank volume (L)	108
Machine size (mm)	L2260*W1800*H2200
Machine weight (KG)	2900

Company Profile
For many years, GKD (Mingju) has diligently integrated premier resources and cutting-edge technologies to deliver unparalleled quality, serving a global clientele with dedication and excellence.
GKD is a distinguished conglomerate specializing in the R&D and manufacturing of CNC machining centers. Nestled near Hong Kong in China, often lauded as the 'World Factory,' GKD also boasts a strategic European headquarters in Italy (Taiwan), establishing a robust global sales and service network. The Group operates five prolific production bases located in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu. Our expansive product portfolio includes vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, five-axis machining centers, and other sophisticated CNC machine tools and production lines. GKD has emerged as a premier manufacturer in China, offering a comprehensive range of CNC metal cutting machine tools, with a fully integrated industrial chain. Our products are extensively utilized across diverse sectors such as aerospace, mold making, automotive, energy, marine, engineering machinery, and 3C electronic products.
GKD Group commits to delivering high-quality products and holistic solutions, adhering to the principles of high-speed, high-precision, and high-efficiency for intelligent equipment. We provide exceptional solutions that meet the cost-effectiveness standards demanded by our clientele. Leveraging strong manufacturing capabilities and exceptional after-sales service, GKD has extended its comprehensive range of products and services to numerous countries and regions worldwide.
GKD Group is honored to serve you with utmost sincerity!
Our Advantages
1. More Professional Service in CNC Machines Exporting Field: We bring years of expertise and a deep understanding of the global CNC machinery market.
2. Italian and Taiwanese Technology, Superior Manufacturing Capability: Leveraging the best of both worlds, our technology and craftsmanship are second to none.
3. Flexible Payment Options: Choose from T/T, Western Union, L/C, or PayPal to suit your convenience.
4. Premium Quality, Safe Materials, and Competitive Pricing: Our commitment to excellence ensures you receive the best value.
5. Small Orders Welcomed: We cater to both large and small-scale needs with equal dedication.
6. Rapid Response: Our team is dedicated to providing swift and effective solutions to all inquiries.
7. Secure and Speedy Transport: Ensuring your products arrive safely and promptly.
8. Custom OEM Designs for All Customers: Tailor-made solutions to meet your unique requirements.
Certifications
Packaging & Shipping
After Sales Service
1)
The quality warranty period is 12 months from the date the shipped commodity arrives at the port of destination, excluding physical damage. During this guarantee period, we will provide you with replacement fittings at no cost. However, please return the damaged fittings via courier at your expense before we send the alternative parts. After the warranty period, any fittings that need repair or replacement will be your responsibility and will be reasonably charged.
2)
As it can be challenging for our engineers to provide on-site maintenance, we offer extensive online support. This includes technical assistance via email, MSN/Skype, camera, video, telephone, and fax for issues related to installation, operation, adjustments, maintenance, and more.
3)
For issues that cannot be resolved through our online support, we offer Door-to-Door service. Should you require our engineers to assemble, maintain, or adjust the machine on-site, you will need to assist with visa formalities, prepay travel expenses, and arrange accommodation for the duration of the service trip. Additionally, please provide a translator for our service engineer. Alternatively, you may send your engineer to our factory for long-term, free technical training.
FAQ
1. What is your minimum order quantity and warranty?
Our minimum order quantity (MOQ) is just one set, and we proudly offer a comprehensive one-year warranty.
2.What brand of the bearing do you use?
We use premium NSK bearings from Japan, ensuring top-notch reliability and performance.
3.When is the delivery time?
We guarantee delivery within 15-30 days after we receive your payment, ensuring timely fulfillment of your order.
4. How to handle the warranty period?
During the warranty period, any product quality issues will be addressed with free maintenance and part replacements. If the problem is not due to our machine's quality, and you require our engineers for repairs, we will charge a reasonable fee for their services.
5.Can your company send the technical personnel to our company and direct our workers for free?
Upon the machine's arrival at your installation site, we will promptly dispatch mechanical and electrical engineers to assist with installation. Your company will need to cover the board and lodging costs for our personnel, along with a daily fee of USD150.00 per person. We will also assist with all necessary visa and installation preparation procedures.

---
