Daikin 231SH Chemus 451HP High purity PFA tubes 1/4 for semiconductor applications

Product Details

Product Description

Product Description

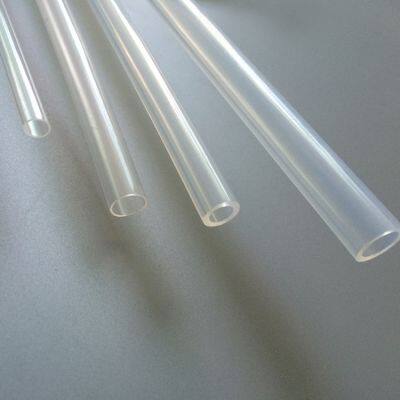

PFA Tubing & Pipe
PFA (perfluoroalkoxy) is the tubing of choice for applications involving extreme chemical resistance combined with high temperature exposure.
PFA tubing and pipe are made exclusively from the highest molecular weight resins available giving them superior physical properties.
PFA tubing is suitable for even the most demanding applications.
PFA pipe may be used with conventional threaded fittings or welded.
PFA tubing is compatible with flare or conventional type fittings.
PFA tubing for Semiconductor and other high purity applications.
PFA Features:
· 100% virgin grade high performance resins used to resist stress cracking
· Chemically inert to nearly all industrial chemicals and solvents
· Higher thermal stability than with FEP
· Lower permeability than with FEP
· Translucent
· Moisture absorption nearly zero
· FDA compliant for food contact
· Non-flammable
· PFA Tubing is suitable for use with flare or conventional fittings
· Available in coiled hose and convoluted constructions
· Low permeation variants are also available
Applications
· Chemical process
· Heat exchangers
· Laboratory applications
· Semiconductor
· Flow monitoring
· Emissions monitoring
· Double containment systems
· Food processing
· Electrical insulation
· Automotive hose
· Automotive paint spray
Specifications
General: meets or exceeds the requirements listed in ASTM D6867-03 and ASTM D3307.
Temperature: –300°F to 500°F
Flammability: UL 94 VO rated. PFA resists combustion and does not promote flame spread
FDA: PFA is approved for use in food contact applications in compliance with FDA regulation: 21 CFR 177.1550
USP CLASS VI: PFA tubing meets the requirements of USP Class VI

---
